TE Connectivity AMP Connectors 1747500-2 — Crimp Contacts & Pins

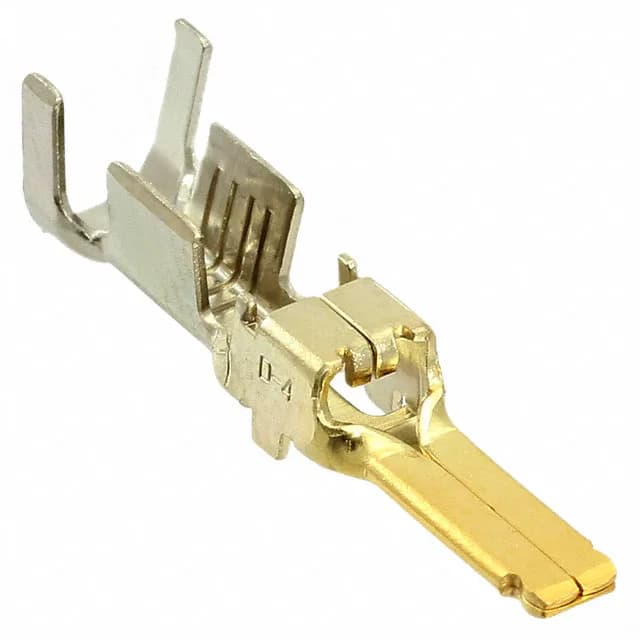

1747500-2 TE Dynamic D-4200 Crimp Tab, 12-14 AWG, Gold

MPN1747500-2
Active

TE Connectivity AMP Connectors Dynamic D-4200 crimp tab, order code 1747500-2, 12-14 AWG, gold contact finish 15.0µin (0.38µm), crimp termination, bulk package.

$1.4400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1747500-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D-4200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1747500-2 specifications
ParameterValue
SeriesDynamic D-4200
Wire gauge12-14 AWG
PackageBulk
Pin or socketTab
Contact finishGold
Contact terminationCrimp
Contact finish thickness15.0µin (0.38µm)

Product details

Contact system & plating

The 1747500-2 is a Dynamic D-4200 series crimp tab, 12-14 AWG, with a gold contact finish of 15.0µin (0.38µm).

Wire range & termination

Accepts 12-14 AWG wire using a standard crimp tool — the tab mates with Dynamic D-4200 receptacle housings that carry the corresponding crimp socket.
