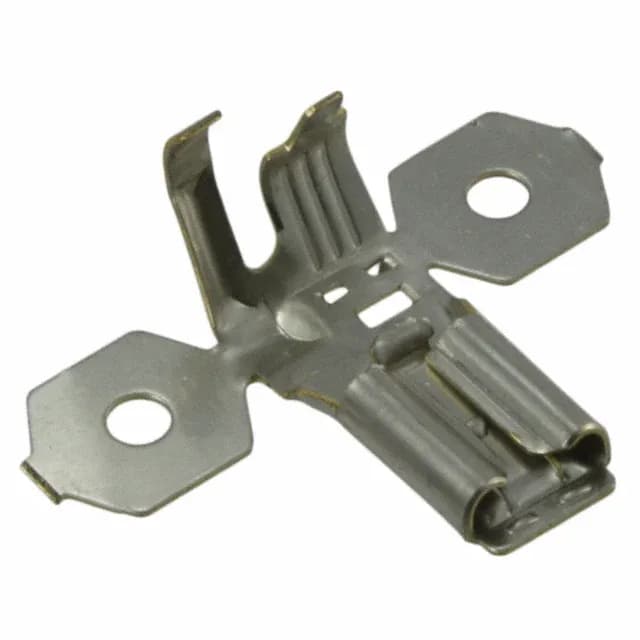

TE Connectivity AMP Connectors Positive Lock EX quick-disconnect receptacle, order code 175019-1, female, 0.187" (4.75mm) tab width, 16-22 AWG, tin-plated brass contact, non-insulated, crimp termination, free hanging right-angle flag.
| Parameter | Value |
|---|---|
| Series | Positive Lock EX |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 16-22 AWG |
| Tab width | 0.187\" (4.75mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.248\" (6.30mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Insulation diameter | 0.059\" ~ 0.170\" (1.50mm ~ 4.32mm) |
The 175019-1 is the 16-22 AWG female quick-disconnect receptacle in TE's Positive Lock EX series, accepting 0.187" (4.75mm) wide tabs with a 0.020" (0.51mm) thickness. The 90° flag orientation routes the wire parallel to the tab axis, suiting tight spaces where a straight-on crimp terminal would not fit.
The 175019-1 is ROHS3 compliant per the manufacturer's listing.
No — the 175019-1 accepts 0.187" tabs and 16-22 AWG wire, while the 1-1659250-0 accepts 0.248" tabs and 17-20 AWG wire; the tab width and wire range are different.
