0.250" tab, 14-18 AWG, tin-plated brass

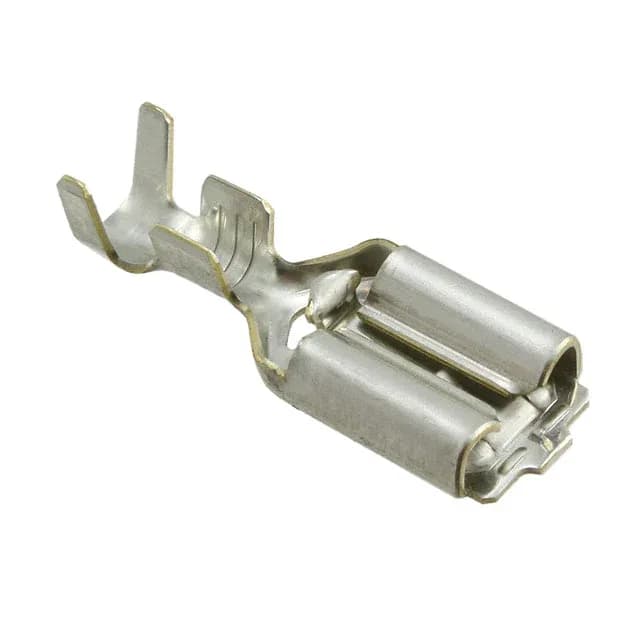

The 175022-1 is a female quick-disconnect terminal in TE's Positive Lock EX series, accepting 0.250" (6.35mm) male tabs and crimping onto 14-18 AWG wire. The tin-plated brass contact is non-insulated and terminates via a standard crimp, with an overall length of 0.836" (21.23mm).
Same-series peers: tab width and wire range
The 175022-1 uses a 0.250" tab width and accepts 14-18 AWG, while the Utilux-series peer 1-1659250-0 uses a slightly narrower 0.248" (6.30mm) tab and accepts 17-20 AWG — the narrower wire range and tab may require a different mating tab and wire preparation. Another Utilux peer, 1-1627194-4, matches the 0.250" tab width and 0.032" (0.81mm) tab thickness but accepts 15-18 AWG and has a shorter overall length of 0.780" (19.81mm) — the wire gauge overlap is partial, and the shorter body may affect insertion depth in some housings.
