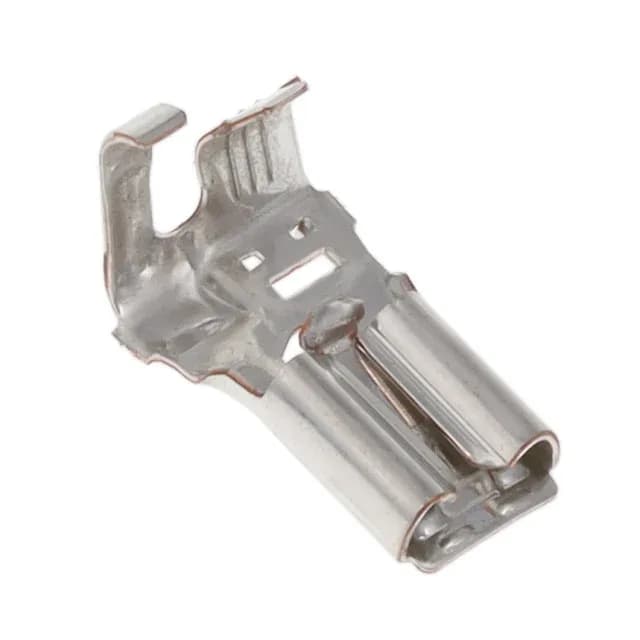

TE Connectivity AMP Connectors Positive Lock EX flag receptacle, order code 175057-2, female, 0.250" (6.35mm) tab width, 0.307" (7.80mm) tab length, 12-18 AWG, tin-plated copper alloy, crimp termination, free hanging right-angle.
| Parameter | Value |
|---|---|
| Series | Positive Lock EX |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 12-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Copper Alloy |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.307\" (7.80mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Insulation diameter | 0.110\" ~ 0.161\" (2.79mm ~ 4.09mm) |
The 175057-2 is a female flag receptacle in TE's Positive Lock EX series, accepting 0.250" (6.35 mm) wide tabs with a 0.032" (0.81 mm) thickness. It terminates 12-18 AWG wire with a crimp and hangs free at a right angle, with tin-plated copper alloy contacts.
The flag receptacle accepts 12-18 AWG wire.
