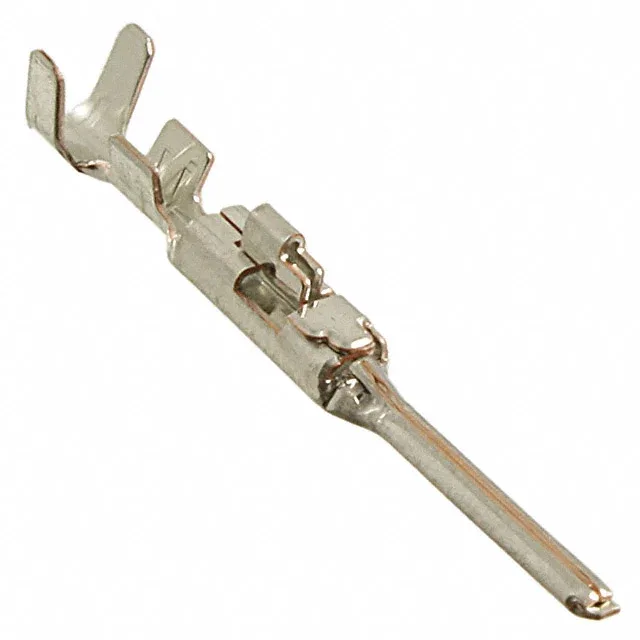

TE Connectivity AMP Connectors Universal Power tab contact, order code 175153-1, power type, 22-26 AWG, tin-plated tab, crimp termination, bulk package.
| Parameter | Value |
|---|---|
| Type | Power |
| Series | Universal Power |
| Wire gauge | 22-26 AWG |
| Package | Bulk |
| Pin or socket | Tab |
| Contact finish | Tin |
| Contact termination | Crimp |
The 175153-1 is a tin-plated tab contact from the TE Universal Power series, accepting 22-26 AWG wire with a crimp termination. Supplied in bulk, the contact is rated for power applications and mates with the corresponding socket in the same series.
The 175153-1 accepts 22-26 AWG wire.
Yes, the 175153-1 is RoHS compliant.
No. The 929989-8 is a socket for 17-20 AWG wire; the 175153-1 is a tab for 22-26 AWG. They are not mating pairs.
