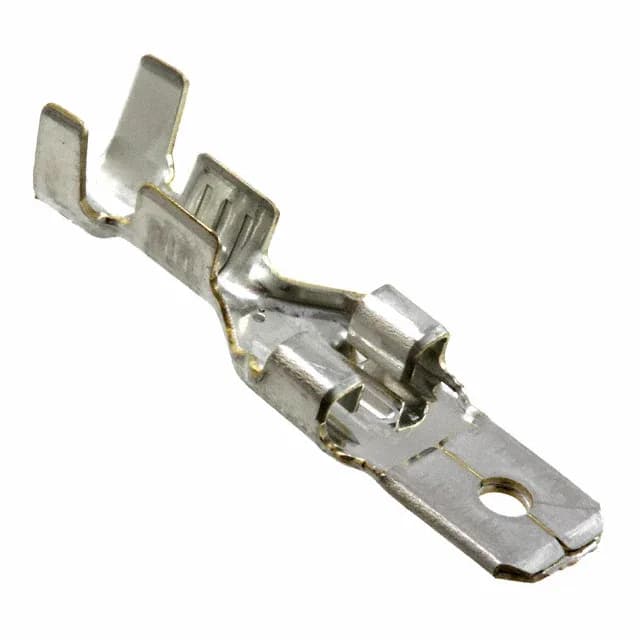

TE Connectivity AMP Connectors Mark II quick-disconnect terminal, order code 175179-1, male, 0.187" (4.75mm) tab width, 0.020" (0.51mm) tab thickness, 16-20 AWG, tin-plated brass, non-insulated, crimp termination, free hanging (in-line).
| Parameter | Value |
|---|---|
| Series | Mark II |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-20 AWG |
| Tab width | 0.187\" (4.75mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.791\" (20.10mm) |
| Insulation diameter | 0.075\" ~ 0.134\" (1.91mm ~ 3.40mm) |
The 175179-1 is a male quick-disconnect terminal from the TE Connectivity Mark II series, with a 0.187" (4.75mm) tab width and 0.020" (0.51mm) tab thickness. It accepts 16-20 AWG wire, terminates by crimp, and carries tin-plated brass contacts for the full current path.
The 175179-1 is available in Tape & Reel (TR) and Cut Tape (CT) packaging.
The 175179-1 is ROHS3 compliant.
