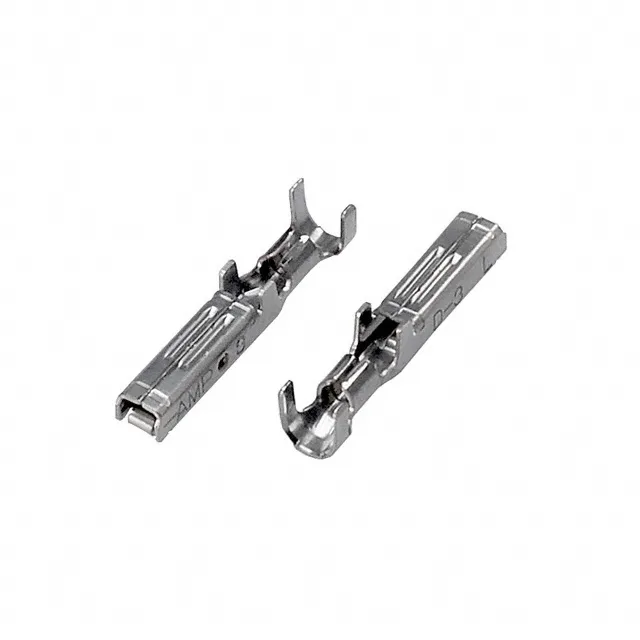

175196-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Dynamic D-3 175196-3 Crimp Socket, 16-20 AWG, Gold

MPN175196-3
Active

TE Connectivity AMP Connectors Dynamic D-3 crimp socket, order code 175196-3, 16-20 AWG, gold contact finish 30.0µin (0.76µm), crimp termination, Tape & Reel package.

$0.24827Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

175196-3 Technical Specifications
ParameterValue
SeriesDynamic D-3
Wire gauge16-20 AWG
PackageTape & Reel (TR)
Pin or socketSocket
Contact finishGold
Contact terminationCrimp
Contact finish thickness30.0µin (0.76µm)

Product details

Crimp socket for Dynamic D-3 power contacts

The 175196-3 is a gold-plated socket contact in TE's Dynamic D-3 series, accepting 16-20 AWG wire with a crimp termination.

Gold vs tin — selecting the right Dynamic D-3 socket

Within the Dynamic D-3 series, the 175196-3 (gold, 16-20 AWG) sits alongside tin-plated socket options such as 1-1326032-0 (tin, 16 AWG) and 929989-8 (tin, 17-20 AWG). The gold finish on the 175196-3 supports a higher mating-cycle duty than tin — choose the 175196-3 for applications where repeated connect/disconnect or corrosive environments are expected; the tin siblings suit lower-cycle, cost-sensitive builds.

Frequently asked questions

Will the 175196-3 drop into a panel specified around 1-1326032-0 without rewiring?

The 175196-3 and 1-1326032-0 share the same Dynamic D-3 socket form factor and crimp termination, but the 175196-3 uses gold plating while 1-1326032-0 uses tin — they are not direct functional equivalents for mating-cycle or corrosion resistance. The wire gauge range also differs: 16-20 AWG for the 175196-3 vs 16 AWG for 1-1326032-0. Evaluate the application's mating-cycle and environmental requirements before substituting.
