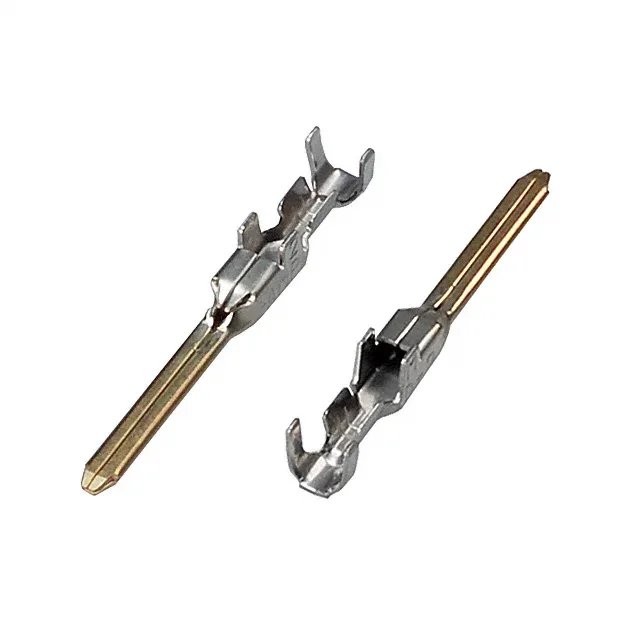

175285-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 175285-2 Dynamic D-3 Crimp Pin, 20-24 AWG, Gold

MPN175285-2
Active

TE Connectivity AMP Connectors Dynamic D-3 crimp pin, order code 175285-2, 20-24 AWG, pin contact, gold plating 15.0µin (0.38µm), crimp termination, Tape & Reel package.

$0.22981Ref. price · indicative, final on quote
175285-2 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

175285-2 Technical Specifications
ParameterValue
SeriesDynamic D-3
Wire gauge20-24 AWG
PackageTape & Reel (TR)
Pin or socketPin
Contact finishGold
Contact terminationCrimp
Contact finish thickness15.0µin (0.38µm)

Product details

Dynamic D-3 crimp pin — 20-24 AWG, gold

The 175285-2 is a crimp pin contact for TE's Dynamic D-3 series, accepting 20-24 AWG wire with a gold-plated mating surface at 15.0µin (0.38µm).

Supplied in Tape & Reel (TR) packaging for automated crimping machines; the base product number is 175285.

Frequently asked questions

What compliance documentation does TE Connectivity AMP Connectors provide for 175285-2?

The 175285-2 carries ROHS3 compliance per the manufacturer. No UL or IEC certification is listed in the available records.
