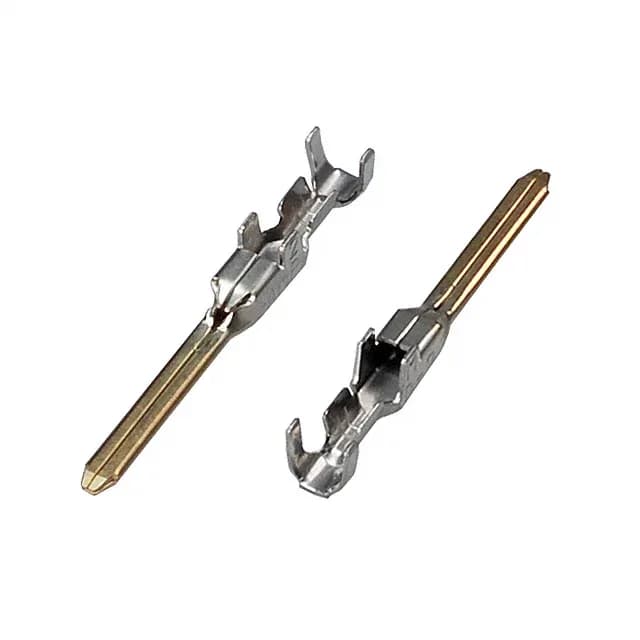

TE Connectivity AMP Connectors Dynamic D-3 crimp pin, order code 175285-3, 20-24 AWG, gold-plated contact finish 30.0µin (0.76µm), crimp termination, Tape & Reel package.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3 |
| Wire gauge | 20-24 AWG |
| Package | Tape & Reel (TR) |
| Pin or socket | Pin |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
The 175285-3 is the gold-plated crimp pin in TE's Dynamic D-3 series, accepting 20-24 AWG wire.
The 175285-3 pin differs from the 1-1326032-0 socket and the 1326031-9 blade — both are 16 AWG tin-plated contacts in the Dynamic D-3 family, so the 175285-3 suits finer-gauge wire and gold-plated mating interfaces. The 929989-8 socket accepts 17-20 AWG with tin plating, a different wire range and plating grade than the 175285-3.
No — 175285-3 is a pin contact for 20-24 AWG; 1-1326032-0 is a socket for 16 AWG. The wire gauge and contact gender differ, so the mating half and wire size must be confirmed before substitution.
