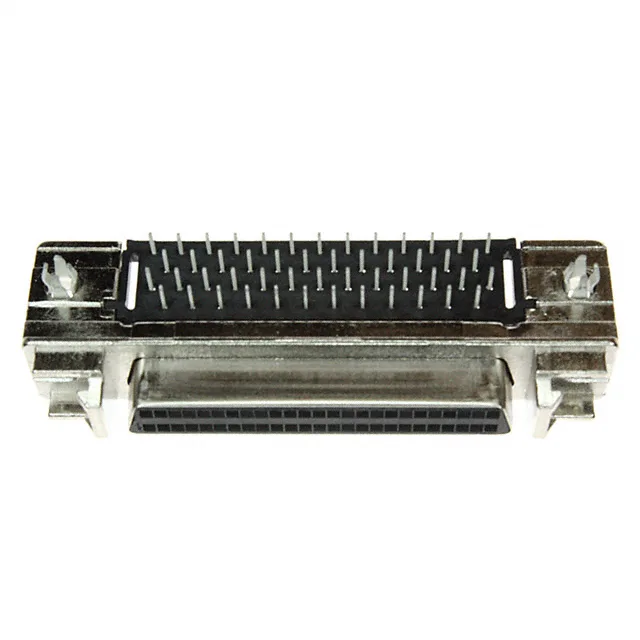

TE Connectivity AMPLIMITE.050 III D-sub receptacle, 50 positions, 2 rows, right-angle through-hole solder, gold-plated contacts, shielded, board locks, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE .050 III |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 30V |
| Current rating | 1A |
| Shell size, connector layout | 0.050 Pitch x 0.100 Row to Row |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Nickel Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Board Lock, Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (2-56); Latchblocks, Rails |
| Rows | 2 |
| Positions | 50 |
The 0.050-inch pitch and 0.100-inch row spacing pack 50 signal contacts into a shell size that would normally carry half that count in a standard D-sub, so the footprint is dense — verify the board keep-out zone against the layout drawing before routing.
Submit a request for quote to confirm current availability and pricing for your BOM quantity.
Yes, the 1761028-3 is listed as RoHS compliant.
It is a through-hole, right-angle mount receptacle — the solder tails exit perpendicular to the board edge, making it suitable for board-edge I/O applications.
