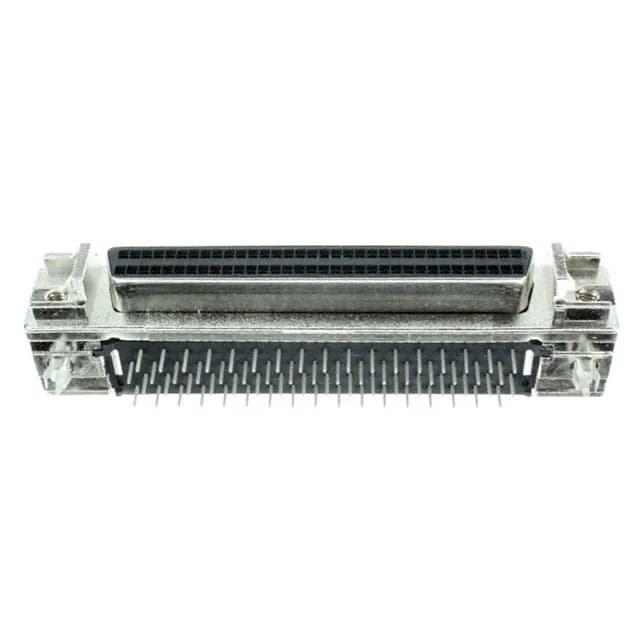

68-Position Shielded D-Sub for Dense Signal Interconnects
The 1761028-4: The 0.050-inch pitch and dual-row layout pack 68 contacts into a shell size that would normally carry half that count in a standard-density D-sub.
1 A per Contact — Signal Duty, Not Power
The 68-position density means the current per circuit is limited by the fine pitch and the temperature rise across the housing.
Right-Angle Solder Termination with Board Lock
The through-hole right-angle termination allows the connector to be wave-soldered into the PCB. The flange features include threaded inserts (2-56) for jackscrew attachment and latchblocks/rails for additional retention with the mating plug.
