What This HSSDC2 Receptacle Is
Board-Mount and Assembly Details
Right-angle SMT termination keeps the connector on the same side as other surface-mount components, so it flows through reflow without a separate wave-solder pass.

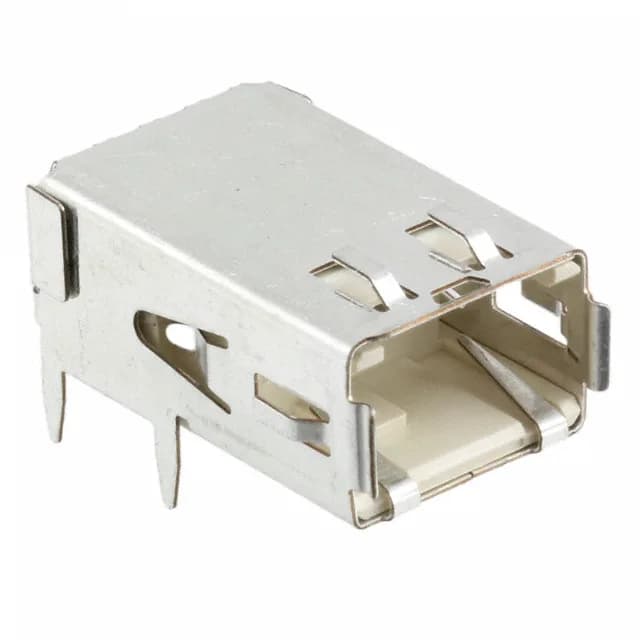

TE 1761072-2 HSSDC2 Receptacle, 7 Pos, SMT Right Angle
MPN1761072-2
Active
TE Connectivity HSSDC2 receptacle, 1761072-2, 7 positions, SMT right-angle mount, gold 50.0µin contacts, Tape & Reel.
$19.7400Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Connector type | HSSDC2 |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Termination | Solder |
| Contact finish | Gold |
| Positions | 7 |
| Contact finish thickness | 50.0µin (1.27µm) |
Product details
Frequently asked questions
Where can I buy 1761072-2?
Submit a request for current pricing and availability — confirmed at quote time.
What is the mating connector for 1761072-2?
It mates with the matching HSSDC2 plug (shielded cable-end connector) from the same TE series. Confirm the plug's position count and keying match the 7-position receptacle before ordering.
