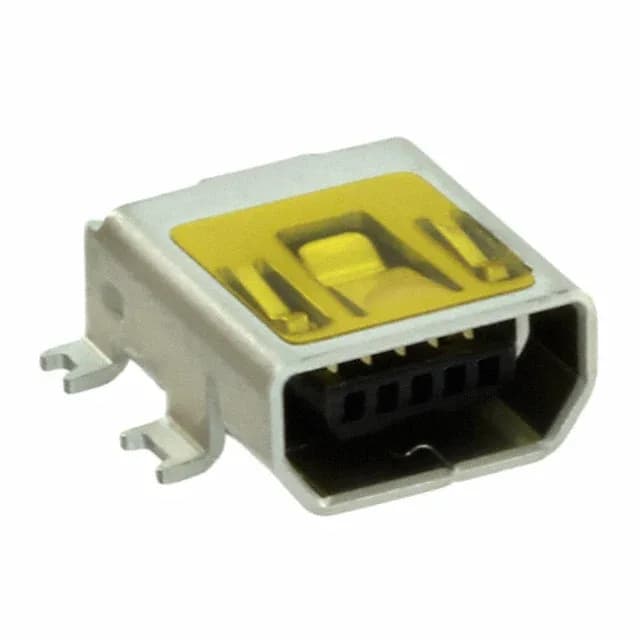

TE Connectivity 1775051-1 USB 2.0 Mini-AB receptacle, 5 contacts, surface mount right-angle, shielded, gold contact finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Connector type | USB - mini AB |
| Positions | 5 |
| Mounting feature | Horizontal |
| Insulation color | Black |
| Shell (Shielding material) | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shielding | Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
It is the receptacle half of the Mini-AB interface, which accepts both Mini-A and Mini-B plugs — a single port that covers both connector styles, reducing the number of different USB ports on a device.
The surface-mount footprint requires a reflow solder profile compatible with the gold-plated contacts and phosphor bronze shell.
Yes, the 1775051-1 is ROHS3 Compliant, meeting the latest RoHS directive requirements.
USB Mini-A and Mini-B are mechanically different plug shapes — Mini-A is flat with a slight taper, Mini-B is more square with indented sides. The Mini-AB receptacle (like the 1775051-1) accepts both plug types, so the device port works with either cable.
