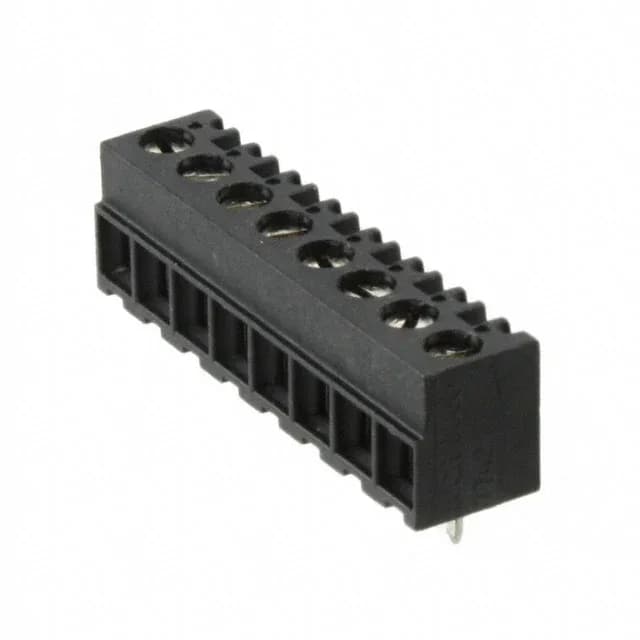

The TE Connectivity Buchanan 1776113-8 is an 8-position PCB-mount terminal block on 3.81 mm pitch.
3.81 mm pitch, 8 positions — PCB footprint match
The 3.81 mm pitch keeps the board footprint compact — 8 positions fit in about 30.5 mm of board edge. Compare against the 10-position sibling (1776113-0) at the same pitch if your circuit count runs higher; the footprint scales linearly, so the layout stays predictable.
12 A, 150 V — power handling for control wiring
Rated 12 A per circuit at 150 V, this block handles typical control and sensor power in industrial panels. The tin-plated copper alloy contacts keep contact resistance stable at these levels — no need for gold plating in a fixed-install terminal block.
Screw-rising cage clamp — field wiring without special tools
The screw-rising cage clamp captures the wire against a nickel-plated copper clamp. Strip the wire, insert into the open clamp, tighten the screw — the clamp rises and traps the conductor. No crimp tool, no ferrule required for solid wire. Accepts 16-28 AWG; the nickel-plated screw and clamp resist corrosion in humid cabinet environments.
