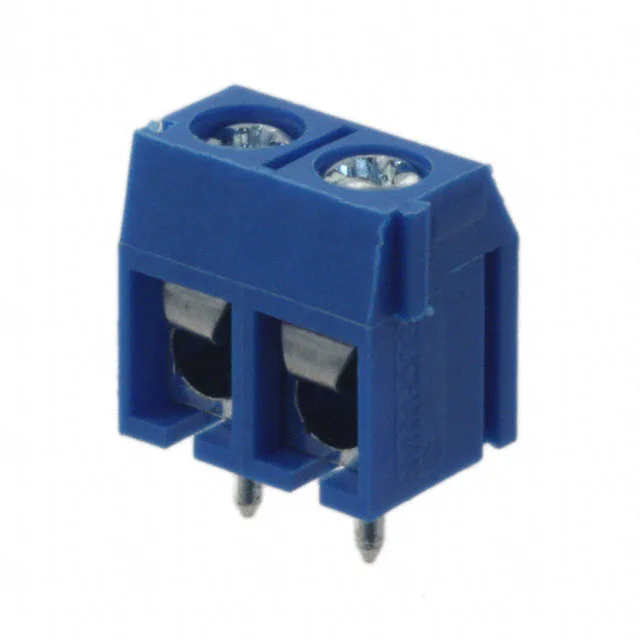

TE Connectivity Buchanan 1776244-2 Terminal Block, 2 Pos

MPN 1776244-2
Active

TE Connectivity Buchanan 1776244-2, 2-position PCB terminal block, 5.00mm pitch, 10 A, 300 V, through-hole, screw termination with leaf spring, blue housing.

$0.6100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1776244-2 key specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current10 A
Wire gauge14-22 AWG
Wire terminationScrew - Leaf Spring, Wire Guard
Operating temperature-55°C ~ 105°C
ColorBlue
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingSteel, Stainless
Screw material - platingSteel, Galvanized - Chromate Plated
Contact material - platingBrass - Tin Plated

All specifications

1776244-2 additional specifications
ParameterValue
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesInterlocking (Side)
Screw threadM2.6
Torque - screw0.51 Nm (4.5 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level2

Product details

Wiring and Sizing This 2-Position Block

The TE Connectivity Buchanan 1776244-2 is a 2-position, single-level PCB terminal block from the Buchanan series. It uses a screw termination with a leaf spring and wire guard — the clamp pulls down on the conductor, not the screw thread directly, so the wire doesn't twist when you torque it. Accepts 14-22 AWG wire; the M2.6 screw takes a torque of 0.51 Nm (4.5 lb-in), which is firm enough for a solid connection on 14 AWG without stripping the polyamide housing.

Current and Voltage — What the Ratings Mean

That 10 A is the continuous current each position can carry at the rated temperature rise — derate above 105 °C ambient.

Through-hole mounting with horizontal wire entry — the screw terminals face parallel to the PCB. The interlocking side feature lets you gang multiple blocks side-by-side on the same rail without gaps.

Materials and Environment

The contacts are brass with tin plating — tin is fine for the screw-clamp interface where the connection is static; the galvanized steel screw with chromate plating resists corrosion in industrial cabinet environments. The stainless steel clamp spring maintains consistent pressure on the wire over temperature cycles.
