TE Connectivity AMP Connectors 1776259-2 — Wire-to-Board Headers

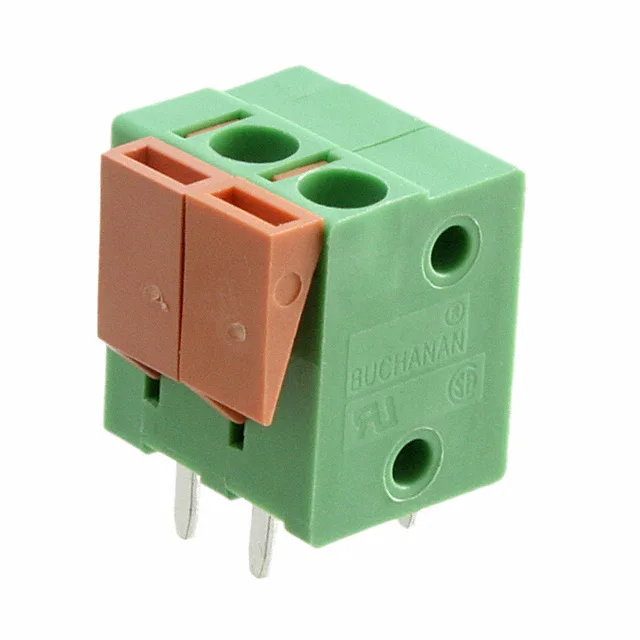

TE Connectivity 1776259-2 Buchanan Terminal Block, 2 Pos

MPN1776259-2
Active

TE Connectivity Buchanan 1776259-2, 2-position PCB terminal block, 5.00 mm pitch, 10 A, 300 V, push-in spring termination, through-hole, green housing.

$1.6700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1776259-2 specifications
ParameterValue
SeriesBuchanan
MountingThrough Hole
Voltage300 V
Current10 A
Wire gauge14-22 AWG
Wire terminationScrewless - Leg Spring, Push-In Spring
Operating temperature-55°C ~ 105°C
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingSteel, Stainless
Contact material - platingBrass - Nickel Tin Plated
Pitch0.197\" (5.00mm)
PackageBulk
Number of levels1
Mating orientationVertical with Board
Positions per level2

Product details

It accepts 14-22 AWG wire and is rated 10 A at 300 V, with a vertical (top-entry) mating orientation. The green polyamide 6/6 housing carries brass contacts with nickel-tin plating, and the clamp material is stainless steel. This is a single-level block meant for control panels, lighting ballasts, HVAC controllers, and any board-level power distribution where you want to land a field wire without a screwdriver.

The push-in spring clamp accepts solid or ferruled stranded wire from 14 AWG down to 22 AWG. No screw to torque — strip the wire, push it into the cage, and the stainless spring holds it. The clamp material is stainless steel, so it won't corrode in a damp cabinet.

Frequently asked questions

What is the pitch of 1776259-2?

The pitch is 0.197" (5.00 mm), which sets the board footprint spacing between adjacent terminals.

What wire gauge does 1776259-2 accept?

It accepts 14-22 AWG solid or ferruled stranded wire via the push-in spring clamp.
