Eurostyle Terminal Strip with 10.00 mm Pitch and 30 A Rating

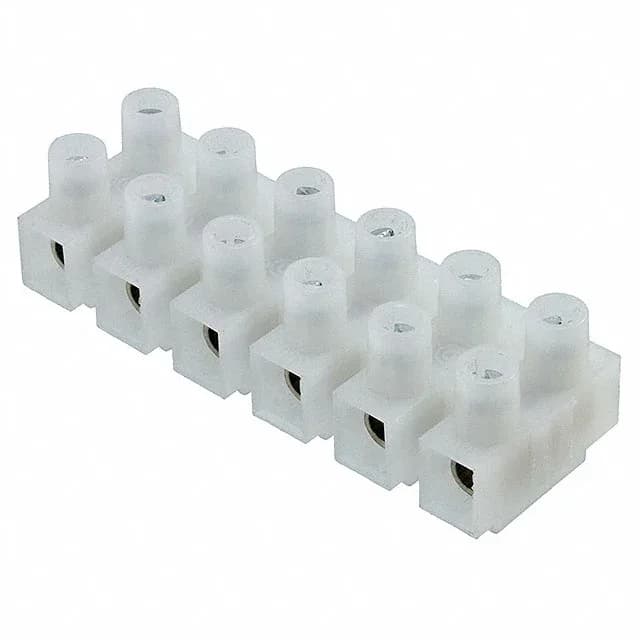

The TE Connectivity 1776296-6 is a 6-circuit Eurostyle terminal strip from the TSB500 series, part of the Buchanan line. It uses an enclosed barrier design with screw top termination and a closed bottom — the screw clamps down on the conductor directly, no crimp terminal or ferrule required. The 0.394" (10.00 mm) pitch gives enough clearance between terminals for the 250 V rating and makes it straightforward to land 10-24 AWG wire without crowding.
30 A per Circuit — Sized for Power Distribution, Not Signal
Rated 30 A per circuit, this strip carries bus-level current — the kind you'd run a motor branch circuit or a DC distribution rail through, not a signal line. The enclosed barrier prevents accidental shorting between adjacent terminals when a stripped wire end is exposed. The 10-24 AWG range covers everything from a 10 AWG feeder down to a 24 AWG control wire, all landed under the same steel screw with a zinc, non-hexavalent chromate finish.
Dual-Row Layout with 12 Wire Entries
Two rows of terminals give 12 wire entries total — two per circuit, which means you can daisy-chain a feed and a load to the same circuit point without a separate jumper. The closed bottom means the strip mounts directly to a chassis or panel, with the screw terminals accessible from the top.
Circuit Count Comparison: 6 vs 7 vs 5 vs 8
The 1776296-6 carries 6 circuits. The same TSB500 series also offers 5 circuits (1776296-5), 7 circuits (1776296-7), and 8 circuits (1776296-8) — all sharing the same 0.394" (10.00 mm) pitch, 30 A current rating, 250 V voltage rating, 10-24 AWG wire range, and enclosed barrier design. The only difference is the number of circuits and the corresponding number of wire entries (10 for the 5-circuit, 14 for the 7-circuit, 16 for the 8-circuit). Choose the circuit count that matches your BOM line.
