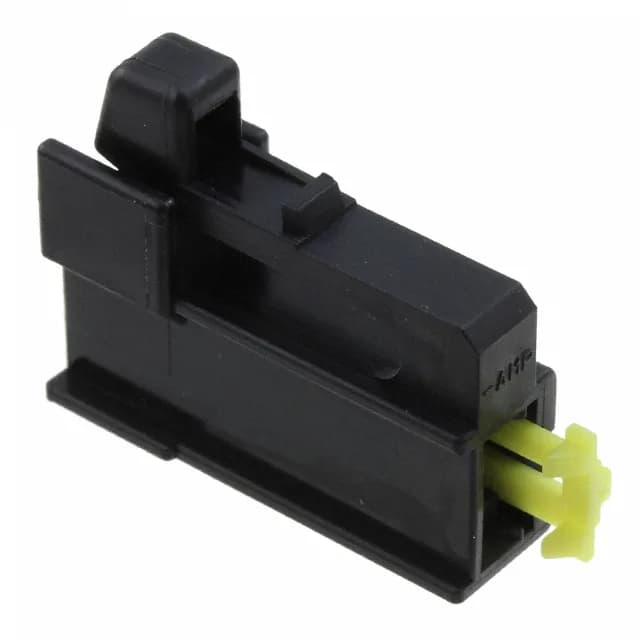

TE Connectivity AMP Connectors 178471-2 — Crimp Contacts

TE 178471-2 250 Series Receptacle Housing, 1 Pos, Black

MPN178471-2
Active

TE Connectivity AMP Connectors 250 series housing, order code 178471-2, 1 position, female receptacle, 0.250" (6.35mm) tab size, free-hanging (in-line), quick connect/disconnect, PBT, black, bulk.

$1.3700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 178471-2 datasheet (PDF)
RoHSRoHS Compliant
Series250
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

178471-2 specifications
ParameterValue
Series250
MountingFree Hanging (In-Line)
Terminal typeQuick Connect, Disconnect
Terminal size0.250\" (6.35mm)
ColorBlack
MaterialPolybutylene Terephthalate
NoteContacts Not Included
StyleHousing
GenderFemale, Receptacle
PackageBulk
Positions1
For use with (Related products)0.250\" (6.35mm) Quick Connects

Product details

Single-position receptacle housing for 0.250" tabs

The 178471-2 is the 1-position female receptacle housing in TE's 250 series, accepting 0.250" (6.35mm) quick-connect tabs. Molded from black PBT, it mounts free-hanging (in-line) and is supplied in bulk. Contacts are not included.

Series & positions

Within the 250 series, the 178471-2 is the single-position housing. Multi-position siblings exist in the Fastin-Faston line — the 6-position 1-171433-5 (male tab) and 1-171432-5 (female receptacle) — but share the same 0.250" tab size and quick-connect termination style.

Mating & sourcing notes

The housing accepts 0.250" (6.35mm) quick-connect tabs; contacts are ordered separately. The free-hanging design suits in-line wire splicing without panel cutouts. Sourced per RFQ against BOM quantity — no stock-holding claim.

Frequently asked questions

How do I get current pricing and availability for 178471-2?

Pricing and availability are confirmed at RFQ against the BOM quantity. No stock-holding claim is made.

What is the listed note 'Contacts Not Included' on this housing?

The housing is supplied without contacts — the 0.250" (6.35mm) quick-connect terminals must be ordered separately.

Will 178471-2 drop into a panel specified around 1-1627127-0 without rewiring?

Both are 1-position female receptacle housings for 0.250" tabs with free-hanging mounting, so the fit and wiring are functionally identical. The main difference is colour (black vs natural) and material (PBT vs nylon).
