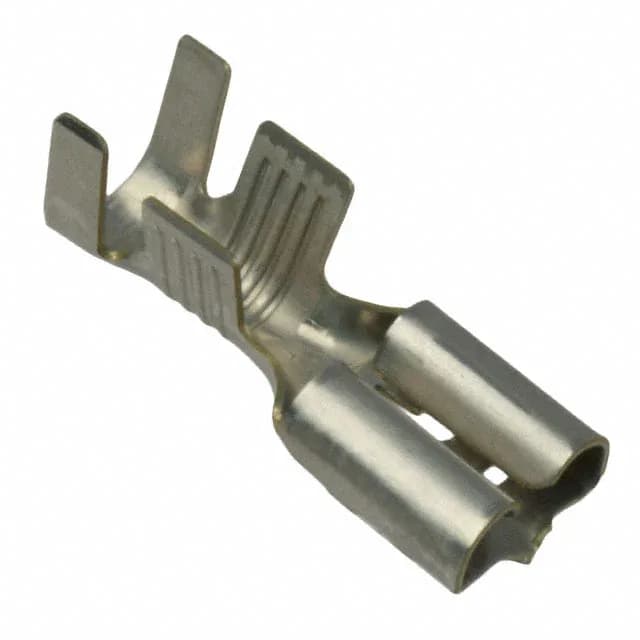

TE Connectivity Fastin-Faston receptacle, order code 180351-2, female, 0.250" (6.35mm) tab width, 10-12 AWG, tin-plated brass, free hanging (in-line), crimp termination.
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 10-12 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.303\" (7.70mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.748\" (19.00mm) |
| Insulation diameter | 0.134\" ~ 0.201\" (3.40mm ~ 5.10mm) |
The 180351-2 is a non-insulated female quick-connect receptacle from the Fastin-Faston series, accepting 10-12 AWG wire via a crimp termination. Tab width is 0.250" (6.35mm) with a tab thickness of 0.032" (0.81mm); the brass contact carries a tin finish.
