TE Connectivity AMP Connectors 180351-5 — Quick-Disconnect Terminals

180351-5 TE Fastin-Faston QC Receptacle 10-12 AWG 0.250"

MPN180351-5
Active

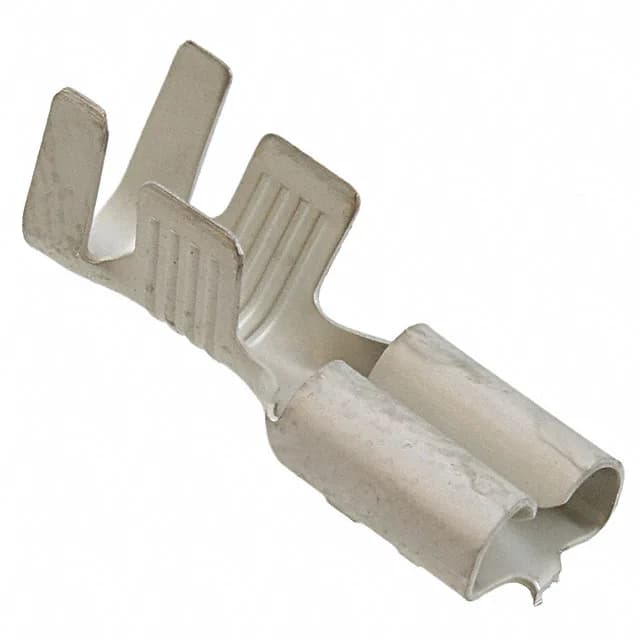

TE Connectivity AMP Fastin-Faston quick-disconnect receptacle, order code 180351-5, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 10-12 AWG, non-insulated, tin-plated phosphor bronze, crimp termination, free hanging.

$0.2400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFastin-Faston
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

180351-5 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge10-12 AWG
Tab width0.250\" (6.35mm)
Contact materialPhosphor Bronze
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.303\" (7.70mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.748\" (19.00mm)
Insulation diameter0.134\" ~ 0.201\" (3.40mm ~ 5.10mm)

Product details

Fastin-Faston 0.250" receptacle, 10-12 AWG

The 180351-5 is a non-insulated female quick-disconnect receptacle in TE's Fastin-Faston series, accepting 0.250" (6.35mm) wide tabs with 0.032" (0.81mm) thickness. Crimped onto 10-12 AWG wire, the tin-plated phosphor bronze contact carries the current path free-hanging in-line.

Tab-width match across the series

The 0.250" tab width and 0.032" thickness are shared with the Utilux 1-1627194-4 (15-18 AWG) — the 180351-5 handles the heavier 10-12 AWG wire, so the crimp barrel and overall length differ.

Frequently asked questions

What is the tab width and thickness of 180351-5?

Tab width is 0.250" (6.35mm); tab thickness is 0.032" (0.81mm).

Does 180351-5 drop into a panel specified around 1-1659250-0?

No — 1-1659250-0 uses a 0.248" (6.30mm) tab and 0.031" (0.79mm) thickness for 17-20 AWG; the 180351-5 is a different tab size and wire range.
