TE Connectivity AMP Connectors 180409-2 — Quick-Disconnect Terminals

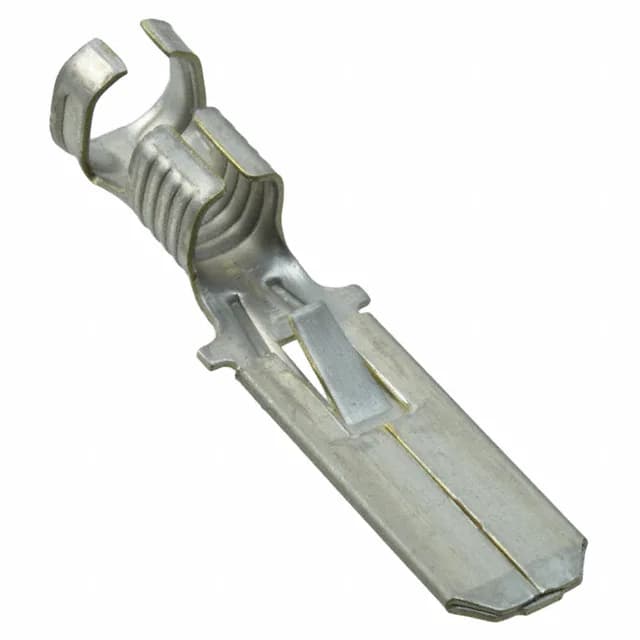

TE Fastin-Faston 180409-2 Male Tab, 0.250" (6.35mm)

MPN180409-2
Active

TE Connectivity Fastin-Faston quick-connect tab, order code 180409-2, male, 0.250" (6.35mm) tab width, 0.618" (15.70mm) tab length, 0.032" (0.81mm) tab thickness, 10-11.5 AWG, non-insulated, crimp termination, free hanging (in-line), bulk package.

$0.3300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFastin-Faston
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

180409-2 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge10-11.5 AWG
Tab width0.250\" (6.35mm)
GenderMale
PackageBulk
InsulationNon-Insulated
Tab length0.618\" (15.70mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Length - overall1.142\" (29.00mm)

Product details

0.250" tab, 10-11.5 AWG, free hanging

The 180409-2 is a male quick-connect tab from the TE Fastin-Faston series, sized for 10-11.5 AWG wire with a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. It terminates via crimp and mounts free hanging (in-line) with no insulation — the bare tab mates with a matching Fastin-Faston receptacle.

Mating half and wire-range contrast

The 180409-2 mates with the 180384-5 female receptacle, which shares the same 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness but accepts 10-12 AWG wire and measures 0.791" (20.09mm) overall length.
