TE Connectivity AMP Connectors 180423-2 — Quick-Disconnect Terminals

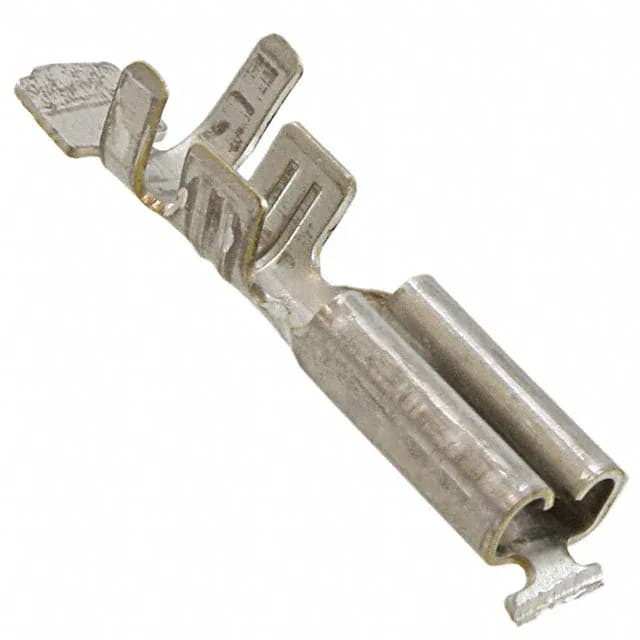

180423-2 TE Faston QC Receptacle, 0.110" Tab, 15-20 AWG

MPN180423-2
Active

TE Connectivity AMP Connectors Faston quick-disconnect receptacle, order code 180423-2, female, 0.110" (2.79mm) tab width, 0.032" (0.81mm) tab thickness, 15-20 AWG, tin-plated brass, non-insulated, crimp termination, free hanging.

$0.1500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

180423-2 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge15-20 AWG
Tab width0.110\" (2.79mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
InsulationNon-Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.528\" (13.41mm)
Insulation diameter0.059\" ~ 0.110\" (1.50mm ~ 2.79mm)

Product details

Faston 0.110" receptacle, non-insulated crimp

The 180423-2 is a female quick-disconnect receptacle from the TE Faston series, accepting 0.110" (2.79mm) wide tabs with 0.032" (0.81mm) thickness. Tin-plated brass contact, crimp termination for 15-20 AWG wire, free-hanging in-line mount. Serrated termination improves wire grip during crimp.

Tab width and wire range

The 180423-2's 0.110" tab width and 15-20 AWG range distinguish it from wider Utilux-series peers like 1-1659250-0 (0.248" tab) and 1-1627194-4 (0.250" tab), which also target heavier wire. Same tin-plated brass, non-insulated crimp construction across the group.

Frequently asked questions

What is the tab width and thickness for 180423-2?

Tab width is 0.110" (2.79mm), tab thickness is 0.032" (0.81mm).

What wire gauge does 180423-2 accept?

Accepts 15-20 AWG wire with crimp termination.

Does 180423-2 have a serrated termination?

Yes, serrated termination is a listed feature for improved wire retention.
