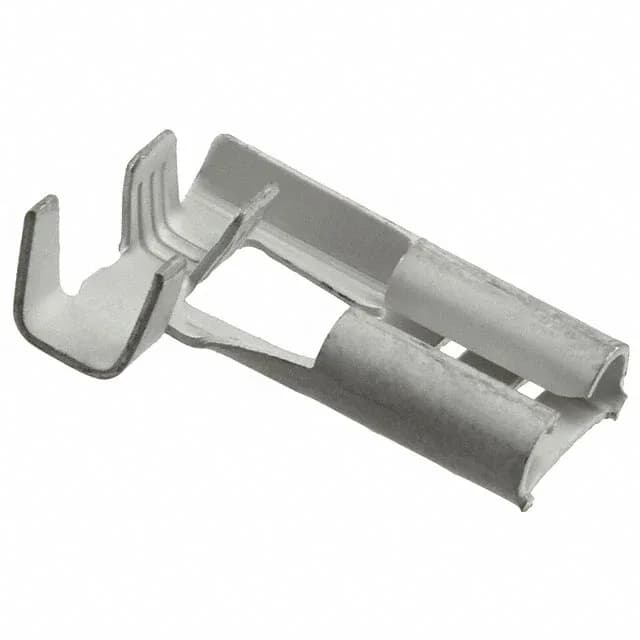

TE Connectivity AMP Connectors Faston quick-disconnect receptacle, order code 180429-2, female, 0.250" (6.35mm) tab width, 13.5-17 AWG, tin-plated brass contact, crimp termination, free hanging right-angle flag.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 13.5-17 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Insulation diameter | 0.098\" ~ 0.150\" (2.50mm ~ 3.81mm) |
The 180429-2 is a female quick-disconnect receptacle in TE's Faston series, terminated by crimp and designed for free-hanging right-angle (flag) mounting. It accepts 13.5-17 AWG wire and mates with a 0.250" (6.35mm) wide, 0.032" (0.81mm) thick male tab. The contact is tin-plated brass; insulation diameter range is 0.098" to 0.150" (2.50mm to 3.81mm).
The 180429-2 is a Female receptacle in the Faston series.
