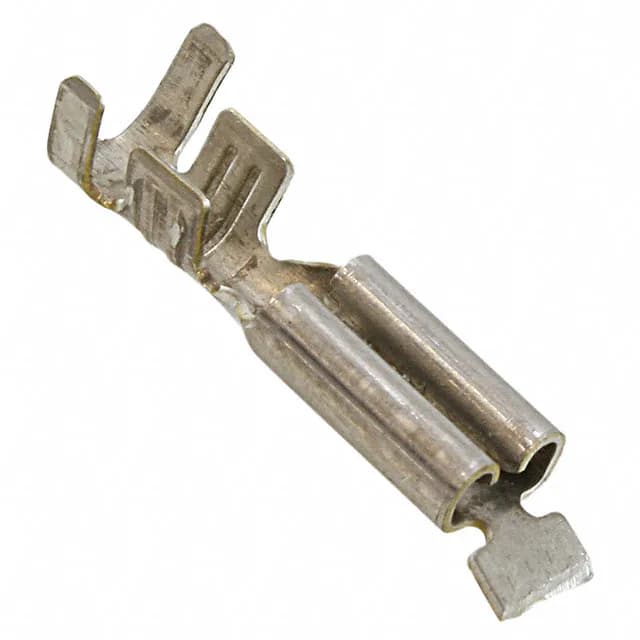

TE Connectivity AMP Connectors Faston quick-disconnect receptacle, order code 180437-2, female, 0.110" (2.79mm) tab width, 15-20 AWG, tin-plated brass, crimp termination, non-insulated, free hanging.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 15-20 AWG |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.527\" (13.39mm) |
| Insulation diameter | 0.059\" ~ 0.110\" (1.50mm ~ 2.79mm) |
The 180437-2 is a non-insulated Faston receptacle that crimps onto 15-20 AWG wire and hangs free in-line — the serrated termination bites into the conductor for mechanical hold before the tin-plated brass contact engages the mating tab. Tab width is 0.110" (2.79mm) with a 0.020" (0.51mm) thickness; the insulation diameter range of 0.059" to 0.110" (1.50mm to 2.79mm) covers common wire insulation sizes in this gauge range.
No — the 180437-2 uses a 0.110" (2.79mm) tab width, while 1-1659250-0 uses a 0.248" (6.30mm) tab. The mating male tab must match the receptacle tab width; swapping requires changing the male terminal as well.
