TE Connectivity AMP Connectors 180464-2 — Quick-Disconnect Terminals

180464-2 TE Faston QC Receptacle 13.5-17 AWG 0.250

MPN180464-2
Active

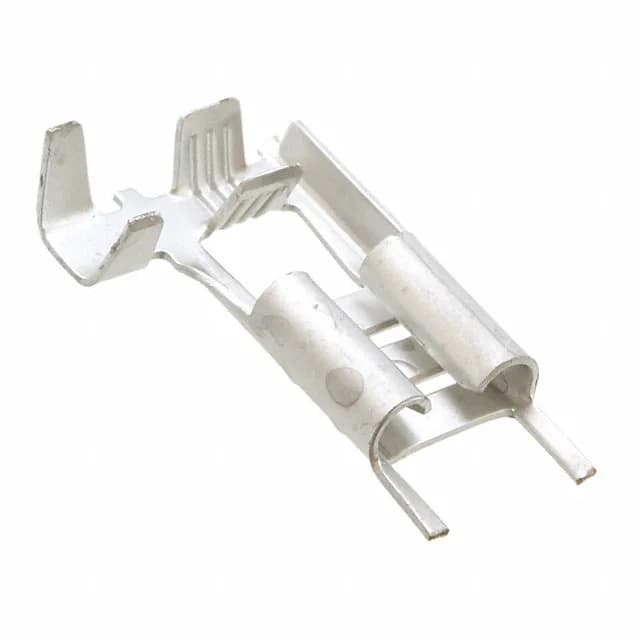

TE Connectivity AMP Connectors Faston quick-disconnect receptacle, order code 180464-2, female, 0.250" (6.35mm) tab width, 13.5-17 AWG, tin-plated brass, non-insulated, flag (90°) crimp termination.

$0.2100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 180464-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFaston
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

180464-2 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line), Right Angle
Terminal typeAngled - 90°, Flag
Wire gauge13.5-17 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.299\" (7.60mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Insulation diameter0.098\" ~ 0.150\" (2.50mm ~ 3.81mm)

Product details

The 180464-2 is a non-insulated flag-style quick-disconnect receptacle from the TE Faston series, accepting 13.5-17 AWG wire. The 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness mate with standard Faston tabs; the tin-plated brass contact suits moderate-cycle applications.

Tab width and wire range vs Utilux peers

The 180464-2's 0.250" tab width matches the Utilux 1-1627194-4, but the 180464-2 accepts 13.5-17 AWG while the 1-1627194-4 is specified for 15-18 AWG — the 180464-2 carries heavier wire on the same tab geometry. The Utilux 1-1659250-0 uses a 0.248" tab width and 17-20 AWG range; the 180464-2's wider tab and heavier wire capacity make it the choice for higher-current circuits in the same free-hanging, non-insulated form factor.

Frequently asked questions

What is the closest functional second-source to 180464-2?

The Utilux 1-1627194-4 shares the 0.250" tab width and non-insulated female flag form factor. Its 15-18 AWG wire range and 0.032" tab thickness are close, but the 180464-2 accepts heavier 13.5-17 AWG wire. Verify the wire gauge and insulation diameter before substituting.
