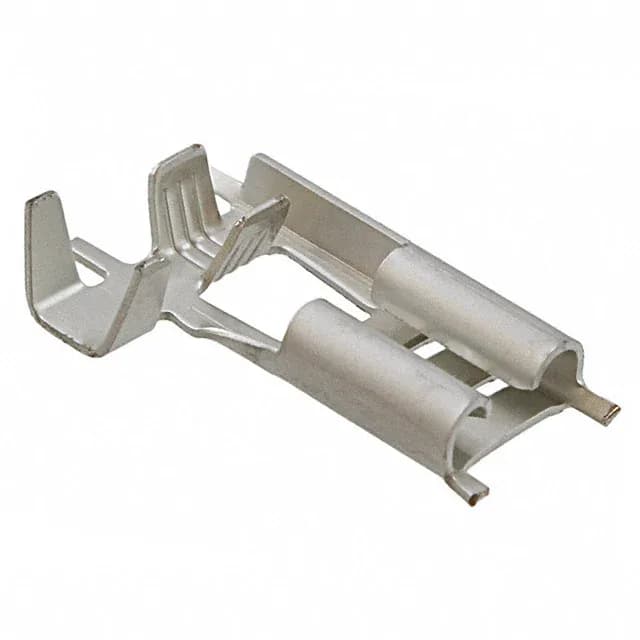

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 180464-5, female, 0.250" (6.35mm) tab width, 13.5-17 AWG, tin-plated phosphor bronze, non-insulated, crimp termination, free hanging right-angle flag.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Angled - 90°, Flag |
| Wire gauge | 13.5-17 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.299\" (7.60mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Insulation diameter | 0.098\" ~ 0.150\" (2.50mm ~ 3.81mm) |
The 180464-5: Tin-plated phosphor bronze contact, crimp termination, free hanging right-angle flag orientation — mates with any 0.250" x 0.032" male tab.
Wire gauge and contact material are the selection axes: the 180464-5 sits between the finer-wire 180430-2 and the same-gauge 100645-3, which omits the tin finish spec but shares the phosphor bronze base.
Both terminals share the same 0.250" tab width and 0.032" tab thickness, so the mating tab interface is identical. The 180464-5 accepts 13.5-17 AWG wire; the 180430-2 accepts 15.5-20 AWG. If the wire gauge in the panel falls within 13.5-17 AWG, the 180464-5 fits without rewiring.
