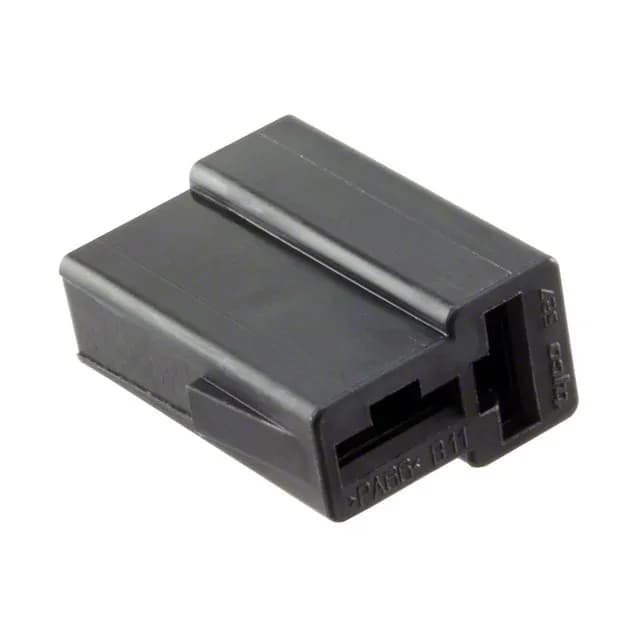

TE Connectivity AMP Connectors Fastin-Faston housing, order code 180907-5, 2 positions, 0.250" (6.35mm) terminal size, female receptacle, black polyamide (PA66) body, free hanging in-line mount, perpendicular stacking, bulk package.
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Quick Connect, Disconnect |
| Terminal size | 0.250\" (6.35mm) |
| Color | Black |
| Material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Style | Housing |
| Gender | Female, Receptacle |
| Package | Bulk |
| Stacking direction | Perpendicular |
| Positions | 2 |
| For use with (Related products) | 0.250\" (6.35mm) Quick Connects |
The 180907-5 is the 2-position receptacle housing in TE's Fastin-Faston line, designed for 0.250" (6.35mm) quick-connect terminals. Molded in black polyamide (PA66), it mounts free hanging in-line with perpendicular stacking — contacts are ordered separately.
Contacts are not included in the housing package; order 0.250" quick-connect terminals separately.
