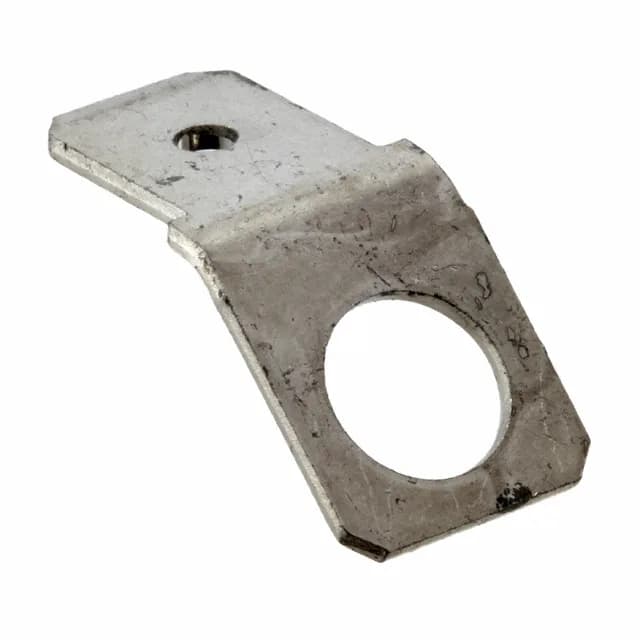

TE Connectivity Faston tab terminal, order code 181948-2, male, 0.250" (6.35mm) tab width, 0.315" (8.00mm) tab length, 0.032" (0.81mm) tab thickness, tin-plated brass, 45° angled, non-insulated, screw/rivet/stud termination, board/chassis mount, bulk.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Board, Chassis |
| Terminal type | Angled - 45° |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Bulk |
| Insulation | Non-Insulated |
| Tab length | 0.315\" (8.00mm) |
| Termination | Screw, Rivet, Stud |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
The 181948-2 is a male Faston tab terminal with a 0.250" (6.35mm) tab width and a 45° angled body, designed for screw, rivet, or stud mounting to a board or chassis. The tin-plated brass contact carries a 0.315" (8.00mm) tab length and 0.032" (0.81mm) tab thickness, non-insulated for direct connection.
The 181948-2 is a male tab terminal.
The 181948-2 is ROHS3 Compliant.
