TE Connectivity AMP Connectors 1827525-1 — USB, Type-C & HDMI Connectors

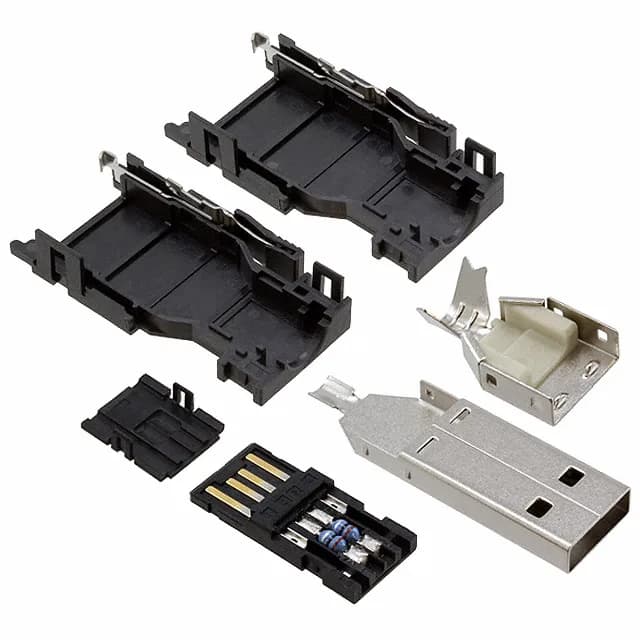

1827525-1 TE Connectivity USB-A Plug, MECHATROLINK II

MPN1827525-1
Active

TE Connectivity, MECHATROLINK II, USB-A (USB TYPE-A) Plug, 1827525-1, 4 Contacts, 1 Port, Gold Contact Finish, Free Hanging, Solder Termination, Bulk.

$4.3700Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1827525-1 specifications
ParameterValue
SeriesMECHATROLINK II
MountingFree Hanging (In-Line)
Connector typeUSB-A (USB TYPE-A)
Positions4
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderPlug
PackageBulk
TerminationSolder
Contact finishGold
Number of ports1

Product details

USB-A Plug for MECHATROLINK II — Free-Hanging, 4-Contact

This is the cable-end plug half — it terminates a USB cable via solder connections and mates with a standard USB-A receptacle. The 4-contact layout follows the USB 2.0 pinout (VBUS, D-, D+, GND), making it electrically compatible with USB 2.0 signaling applications. Gold plating on the contacts provides corrosion resistance for field-service life and repeated mating cycles.

Mounting and Termination — In-Line Cable Assembly

The solder termination requires stripping and tinning the USB cable wires before soldering to the contact tails. For production volumes, overmolding the cable exit provides strain relief and environmental sealing. The steel shell/shielding material provides EMI containment when mated with a shielded receptacle.

Flammability and Compliance — UL94 V-0 Housing

The connector is RoHS compliant per the TE Connectivity standard declaration.

Frequently asked questions

Where can I buy the 1827525-1 USB-A plug?

Submit a request for quote to confirm current availability and pricing — stock is confirmed at quote time.

Is the 1827525-1 RoHS compliant?

Yes, the 1827525-1 is RoHS compliant per TE Connectivity's standard declaration. No exemption flags are noted on the product listing.

Can the 1827525-1 be used for USB 2.0 applications?

Yes. The 4-contact layout matches the standard USB 2.0 pinout (VBUS, D-, D+, GND), and the USB-A form factor is electrically and mechanically compatible with USB 2.0 signaling. The gold contact finish supports the mating cycle life typical of USB peripherals.
