TE Connectivity AMP Connectors 1827588-2 — Crimp Contacts & Pins

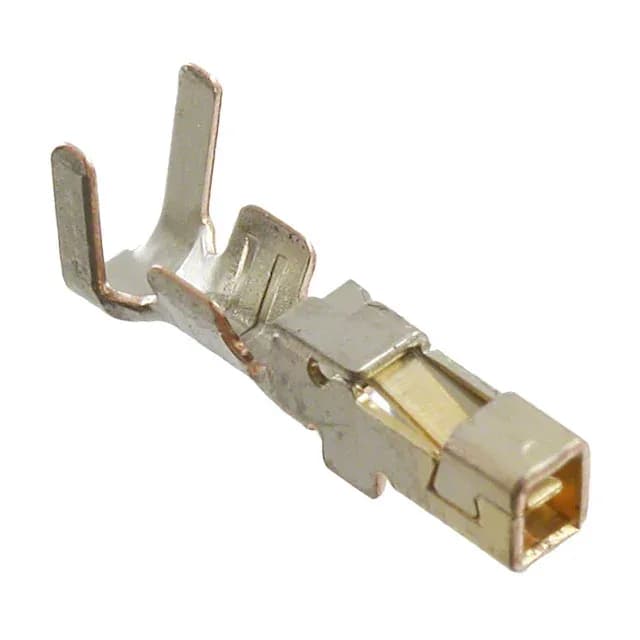

TE Dynamic D-1000 1827588-2 Crimp Socket, 22-28 AWG, Gold

MPN1827588-2
Active

TE Connectivity Dynamic D-1000 crimp socket, order code 1827588-2, 22-28 AWG, gold 15.0µin (0.38µm) contact finish, crimp termination, bulk package.

$0.3800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-1000
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1827588-2 specifications
ParameterValue
SeriesDynamic D-1000
Wire gauge22-28 AWG
PackageBulk
Pin or socketSocket
Contact finishGold
Contact terminationCrimp
Contact finish thickness15.0µin (0.38µm)

Product details

Crimp socket for the D-1000 line

The 1827588-2 is a gold-plated crimp socket from TE's Dynamic D-1000 series, accepting 22-28 AWG wire.

Comparing to tin-plated siblings

Within the Dynamic D-1000 family, the 1827588-2 carries gold plating, while the 1-1326032-0 and 929989-8 use tin-plated contacts for 16 AWG and 17-20 AWG respectively. Gold plating supports higher mating cycle counts than tin — select the 1827588-2 for applications requiring repeated connect/disconnect.

Frequently asked questions

What compliance documentation does TE provide for 1827588-2?

ROHS3 compliance is confirmed.

Will 1827588-2 drop into a panel specified around 1-1326032-0 without rewiring?

No — 1827588-2 accepts 22-28 AWG wire, while 1-1326032-0 is for 16 AWG. The wire gauge range differs, so the same panel wiring would not fit without changing the wire size.
