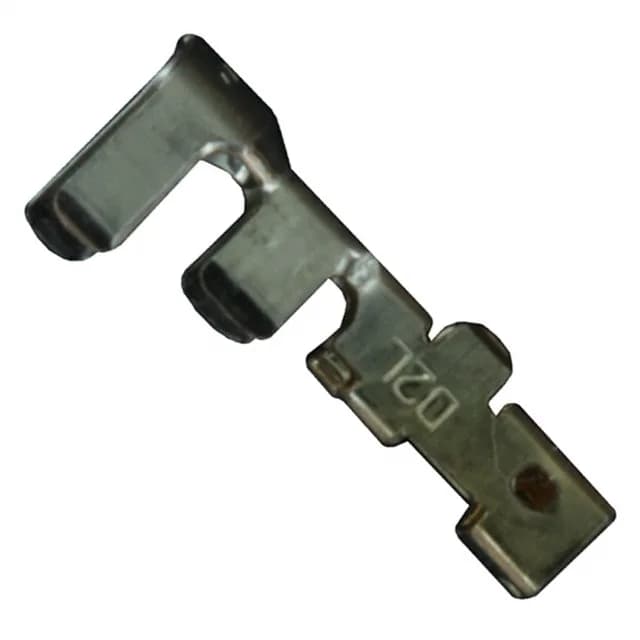

TE Connectivity AMP Connectors Dynamic D-1000 socket contact, order code 1827589-2, 18-22 AWG, gold-plated mating surface with 15.0µin (0.38µm) thickness, crimp termination, bulk packaging.
| Parameter | Value |
|---|---|
| Series | Dynamic D-1000 |
| Wire gauge | 18-22 AWG |
| Package | Bulk |
| Pin or socket | Socket |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 15.0µin (0.38µm) |
The 1827589-2 is the gold-plated socket member of TE's Dynamic D-1000 crimp contact line, accepting 18-22 AWG wire with a crimp termination.
The 1827589-2 carries gold mating surfaces while the sibling 1-1326032-0 in the same Dynamic D-1000 series uses tin plating — the gold version is the choice for applications with frequent connect-disconnect cycles or corrosive environments.
The 1827589-2 is a socket contact with 18-22 AWG wire range and gold plating, while 1-1326032-0 is a 16 AWG tin-plated socket — the wire gauge and plating differ, so rewiring is required for the same housing.
