TE Connectivity AMP Connectors 184070-1 — Ring Terminals

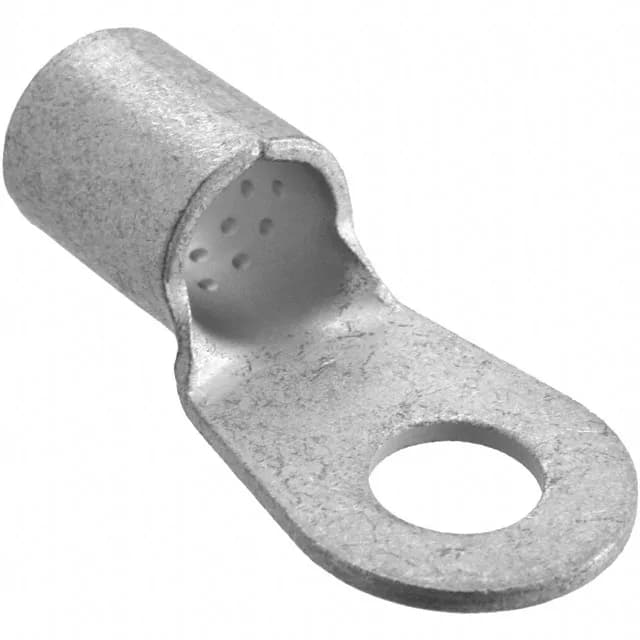

TE Connectivity 184070-1 Solistrand Ring Terminal, 1/0 AWG

MPN184070-1
Active

TE Connectivity AMP Connectors Solistrand ring terminal, order code 184070-1, 1/0 AWG, non-insulated, tin-plated copper, brazed seam, serrated termination, 0.070" (1.78mm) thickness, free hanging in-line crimp.

$5.9500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 184070-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

184070-1 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge1/0 AWG
Contact materialCopper
Width - outer edges0.875\" (22.23mm)
PackageBulk
FeaturesBrazed Seam, Serrated Termination
Thickness0.070\" (1.78mm)
InsulationNon-Insulated
TerminationCrimp
Contact finishTin
Length - overall1.956\" (49.68mm)

Product details

Solistrand ring terminal for 1/0 AWG

The 184070-1: The terminal is tin-plated copper with a brazed seam and serrated termination, measuring 0.070" (1.78mm) thick with an overall length of 1.956" (49.68mm) and outer edge width of 0.875" (22.23mm).

Position within the Solistrand series

The 184070-1 handles the largest wire gauge in the Solistrand ring terminal family: 1/0 AWG versus 6 AWG for the 184066-1 and 8 AWG for the 184064-1. The 184147-1 is a 2 AWG flag-style variant. All share tin-plated copper construction, brazed seam, and serrated termination.

Frequently asked questions

Will 184070-1 fit a panel designed for 184066-1?

No. The 184070-1 has a larger outer width (0.875" vs 0.625") and longer overall length (1.956" vs 1.246") than the 184066-1, so it will not drop into the same panel footprint without rewiring.
