TE Connectivity AMP Connectors 184268-2 — Quick-Disconnect Terminals

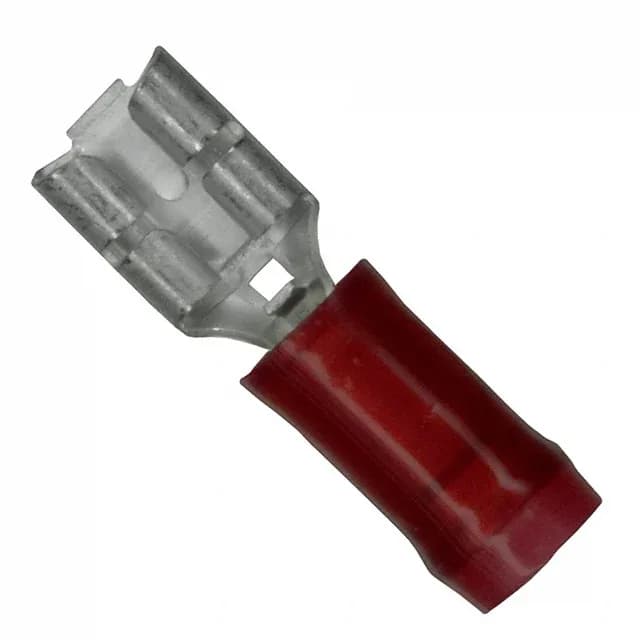

TE 184268-2 Faston PIDG QC Receptacle 18-22 AWG Red

MPN184268-2
Active

TE Connectivity AMP Connectors Faston, PIDG quick-disconnect receptacle, order code 184268-2, female, 18-22 AWG, 0.187" (4.75mm) tab width, 0.250" (6.35mm) tab length, tin-plated brass contact, crimp termination, free hanging, red non-mating end insulation.

$0.4600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 184268-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFaston, PIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

184268-2 specifications
ParameterValue
SeriesFaston, PIDG
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge18-22 AWG
ColorRed
Tab width0.187\" (4.75mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Mating End Insulated
Tab length0.250\" (6.35mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.800\" (20.32mm)
Insulation diameter0.135\" (3.43mm)

Product details

Red-insulated 0.187" QC receptacle for 18-22 AWG

The 184268-2 is a Faston PIDG-series female quick-disconnect receptacle accepting 18-22 AWG wire, with a 0.187" (4.75mm) tab width and 0.250" (6.35mm) tab length. Tin-plated brass contact, crimp termination, free-hanging mount, and a red non-mating end insulation sleeve that covers the crimp barrel.

ROHS3 compliant.

Tab width and wire range vs. 1377175-8

The 184268-2 uses a 0.187" (4.75mm) tab width for 18-22 AWG, while the same-series 1377175-8 steps up to a 0.312" (7.92mm) tab for 14-16 AWG with a longer 0.980" (24.89mm) overall length — the larger tab handles heavier wire, but the insulation diameter and tab thickness differ: 0.135" (3.43mm) vs. 0.170" (4.32mm) and 0.032" (0.81mm) vs. 0.030" (0.76mm).

Frequently asked questions

What is 184268-2's listed color and gender?

Red insulation sleeve, female receptacle.

Will 184268-2 drop into a panel that was specified around 1377175-8 without rewiring?

No — the 184268-2 uses a 0.187" (4.75mm) tab width for 18-22 AWG wire, while the 1377175-8 uses a 0.312" (7.92mm) tab for 14-16 AWG wire. The tab dimensions and wire range are different; the mating tab must match the receptacle width.
