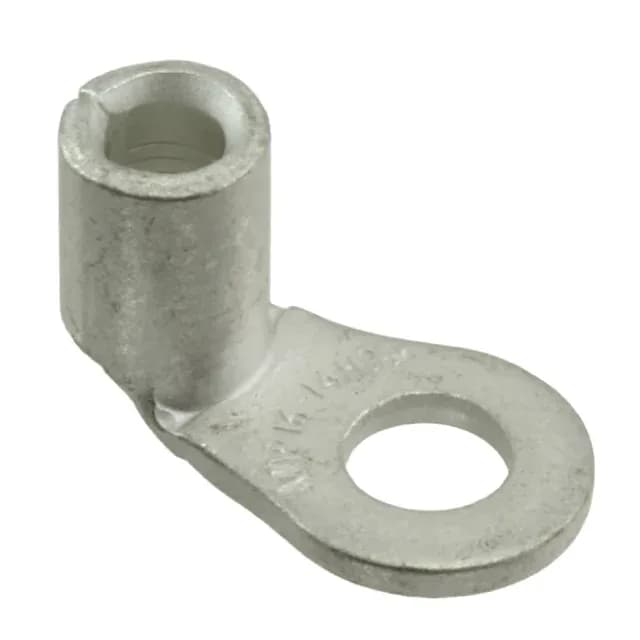

TE Connectivity Solistrand ring terminal, order code 184269-1, 14-16 AWG, #8 stud, tin-plated copper, non-insulated, brazed seam, serrated termination, free-hanging right-angle, crimp termination.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Contact material | Copper |
| Width - outer edges | 0.343\" (8.71mm) |
| Package | Bulk |
| Features | Brazed Seam, Heavy Duty, Serrated Termination |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
The 184269-1 is a TE Connectivity Solistrand non-insulated ring terminal for 14-16 AWG wire, terminating to a #8 stud via a crimp connection. Tin-plated copper construction with a brazed seam and serrated termination — the serrations bite into the conductor strands during crimp to improve pull-out force and contact resistance.
