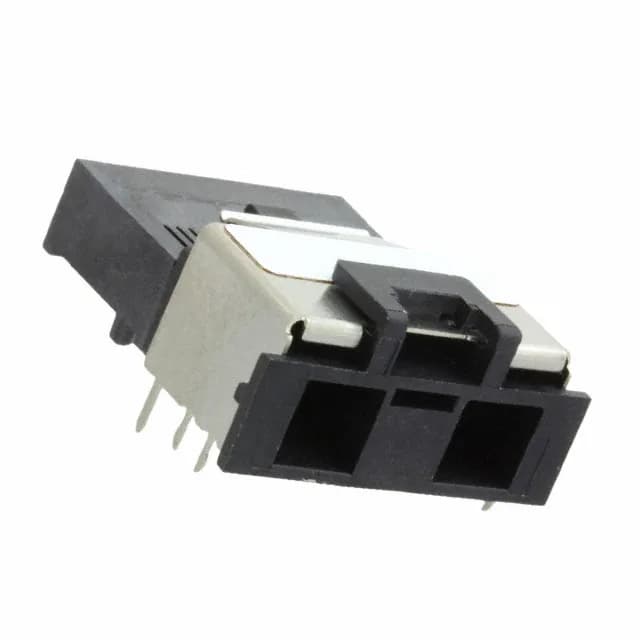

TE Connectivity EVERCLEAR series SAS Mini receptacle, 36 positions, SMT right-angle, gold 30.0µin contacts, board lock, keyed.
| Parameter | Value |
|---|---|
| Series | EVERCLEAR |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Lock, Keyed |
| Termination | Solder |
| Contact finish | Gold |
| Positions | 36 |
| Contact finish thickness | 30.0µin (0.76µm) |
The keying feature prevents a SAS cable plug from being inserted into the wrong port when the backplane has multiple identical-looking receptacles side by side.
Submit a request for the quantity you need, and we will confirm current availability and pricing at quote time — no static price or stock count is published here.
Both are EVERCLEAR SAS Mini receptacles with the same 36-position count and gold contacts. The difference is packaging: the 1888019-4 comes in Tape & Reel or Cut Tape for automated SMT placement, while the 2227302-3 ships in a Box for hand assembly or low-volume builds.
