Wire gauge range across the series
The 1903118-2 accepts 18-22 AWG, while the 1903117-2 and 1903116-2 in the same Dynamic D-1000 series are specified for 22-28 AWG — select the tab by wire gauge to match the conductor cross-section.

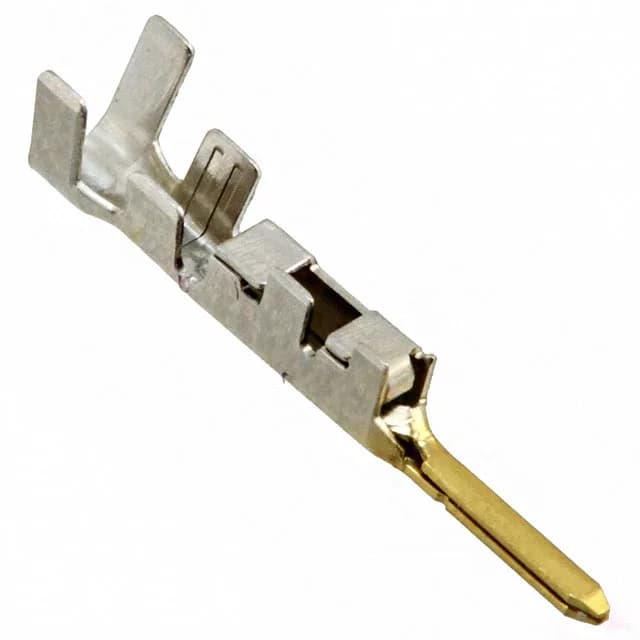

TE Dynamic D-1000 1903118-2 Crimp Tab, 18-22 AWG, Gold
MPN1903118-2
Active
TE Connectivity AMP Connectors Dynamic D-1000 crimp tab, order code 1903118-2, 18-22 AWG, gold-plated contact, 15.0µin (0.38µm) plating thickness, crimp termination, bulk packaging.
$0.4100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDynamic D-1000
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-1000 |
| Wire gauge | 18-22 AWG |
| Package | Bulk |
| Pin or socket | Tab |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the closest functional second-source — 1903117-2?
The 1903117-2 is a same-series Dynamic D-1000 crimp tab with identical gold plating and crimp termination, but specified for 22-28 AWG wire rather than 18-22 AWG.
