96-Position Backplane Header for High-Density Routing

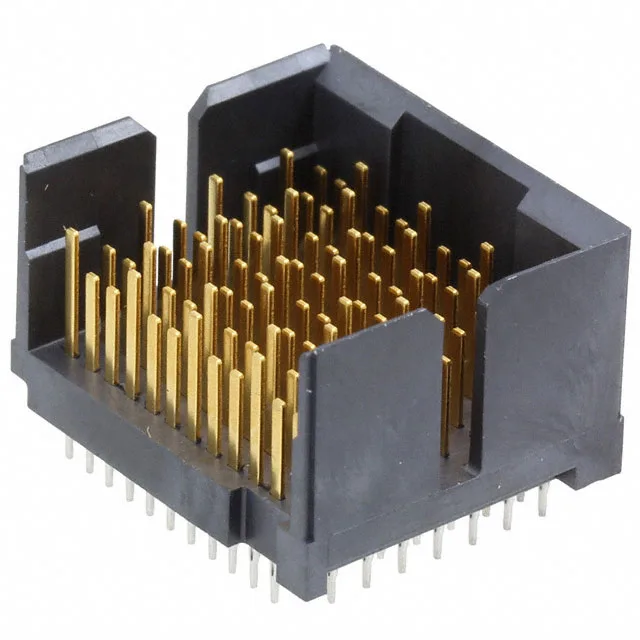

The TE Connectivity Z-PACK TinMan 1934304-1 is a 96-position, 12-row by 8-column male pin header designed for high-speed backplane interconnect. The 0.075" (1.90mm) pitch packs the signal density needed for large backplane boards while keeping the board footprint manageable. The press-fit termination eliminates solder joints, which is the standard for backplane assemblies where rework and reliability matter.
Press-Fit Termination — No Solder, Backplane-Ready
Press-fit is the termination of choice for high-density backplane connectors. The compliant pin deforms elastically into the plated through-hole, creating a gas-tight joint without the thermal stress of soldering. This means the 1934304-1 can be pressed into a backplane board in a single operation — no wave solder, no reflow profile to manage. Rework is straightforward: a press-fit pin can be extracted and replaced without damaging the board or adjacent holes. The through-hole mounting type supports the mechanical retention needed for the 96-pin grid.
