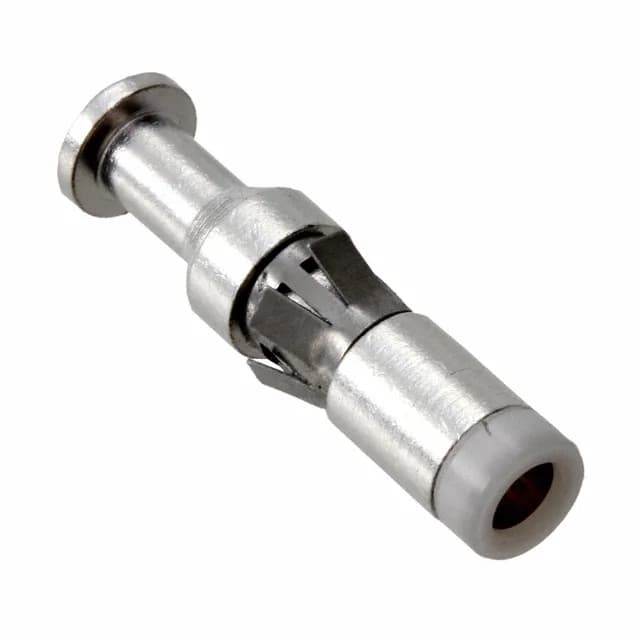

TE Connectivity AMP Connectors Ampower power socket contact, order code 194032-7, 12-14 AWG wire gauge, silver-plated, 200.0µin (5.08µm) plating, 15 A, crimp termination, bulk package.
| Parameter | Value |
|---|---|
| Type | Power |
| Series | Ampower |
| Current rating | 15 A |
| Wire gauge | 12-14 AWG |
| Package | Bulk |
| Pin or socket | Socket |
| Contact finish | Silver |
| Contact termination | Crimp |
| Contact finish thickness | 200.0µin (5.08µm) |
The 194032-7 is a silver-plated power socket contact from TE's Ampower series, accepting 12-14 AWG wire via a standard crimp termination. Rated 15 A with 200.0µin (5.08µm) silver plating, the contact suits power applications where high mating cycle life and corrosion resistance are needed.
The 194032-7 is ROHS3 compliant per TE Connectivity AMP Connectors.
