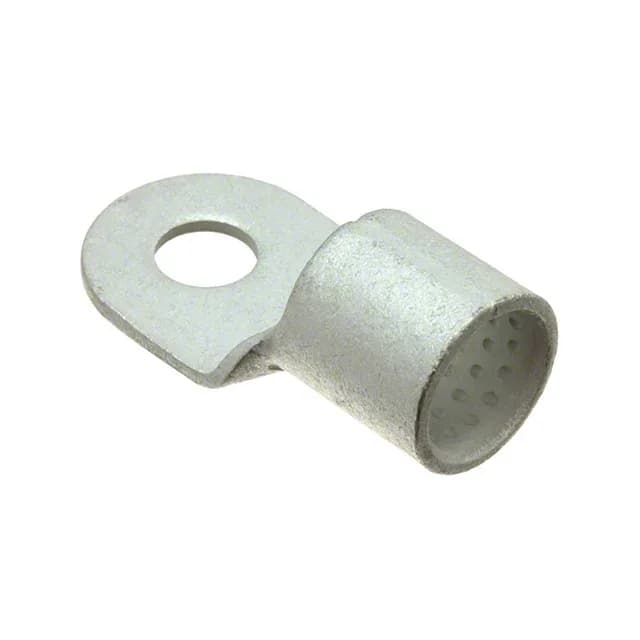

TE Connectivity AMP Connectors Solistrand ring terminal, order code 1958311-1, 3/0 AWG, circular, non-insulated, tin-plated copper, brazed seam, 0.091" (2.31mm) thickness, free hanging in-line, crimp termination.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 3/0 AWG |
| Contact material | Copper |
| Width - outer edges | 1.082\" (27.48mm) |
| Package | Bulk |
| Features | Brazed Seam |
| Thickness | 0.091\" (2.31mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Contact finish | Tin |
| Length - overall | 2.143\" (54.43mm) |
The 1958311-1 is the 3/0 AWG member of TE's Solistrand ring terminal line, a non-insulated circular terminal for free-hanging in-line crimp termination. The terminal is tin-plated copper with a brazed seam, 0.091" (2.31mm) thick, and measures 2.143" (54.43mm) overall length with 1.082" (27.48mm) outer edge width.
The 1958311-1 is RoHS compliant per TE Connectivity AMP Connectors.
