TE Connectivity AMP Connectors 1971567-1 — LED Lighting Connectors

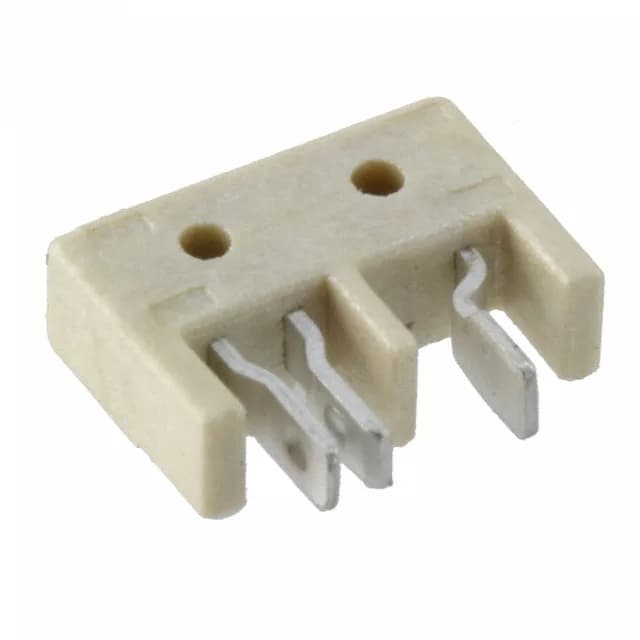

TE Connectivity 1971567-1, 2-Pos Hermaphroditic

MPN1971567-1
Active

TE Connectivity hermaphroditic blade-and-receptacle connector, 1971567-1, 2 positions, 0.118" (3.00mm) pitch, right-angle surface mount, board-edge mount, rated 3A at 300V, tin-plated contacts.

$0.8200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1971567-1 specifications
ParameterValue
MountingBoard Edge, Surface Mount, Right Angle
Connector typeBlade and Receptacle, Hermaphroditic
Voltage rating300V
Current rating3A
Operating temperature-40°C ~ 105°C
Housing colorNatural
Contact materialBrass; Copper Alloy
Housing materialThermoplastic
Pitch0.118\" (3.00mm)
StyleBoard to Board
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder
Contact finishTin
Positions2

Product details

Hermaphroditic means the same part number mates with itself — no separate male/female halves to manage in inventory, and a single line item on the BOM covers both sides of the connection. The natural thermoplastic housing carries no UL94 rating in the record, so verify the enclosure's flame class before specifying in an unvented assembly.

The closest functional peer in the same hermaphroditic family is the 1-2213614-1, which runs a wider 0.157" (4.00mm) pitch and carries a higher 6 A current rating. The 1971567-1 at 3.00 mm pitch saves board real estate — about 1.0 mm less per row — but the 1-2213614-1 steps up to gold-plated contacts and a liquid crystal polymer (LCP) housing, both of which improve mating cycle life and high-temperature reflow compatibility. If the BOM calls for a 2-position hermaphroditic board-edge connector and the current draw stays under 3 A, the 1971567-1 fits the footprint. If the assembly sees repeated matings or needs the extra ampacity, the 1-2213614-1 is the better call — but it also requires the wider board layout.

Frequently asked questions

What is the pitch of TE Connectivity 1971567-1?

The pitch is 0.118" (3.00mm), which defines the board footprint for the right-angle surface-mount termination.
