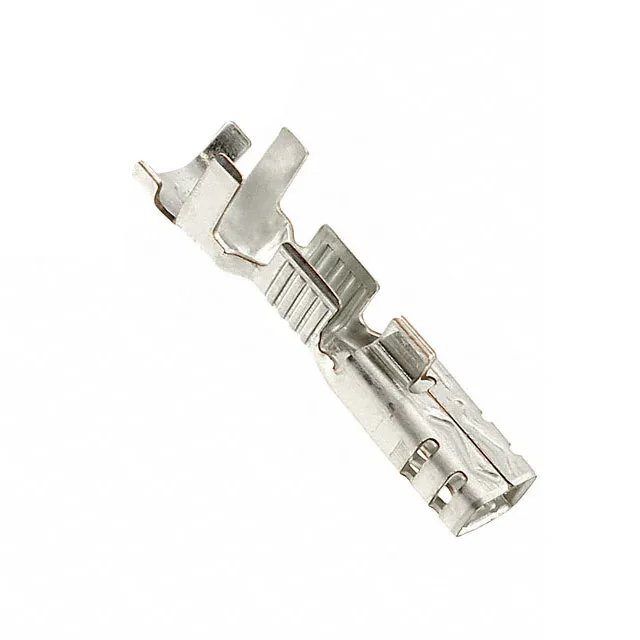

TE Connectivity AMP Connectors Power Triple Lock, Standard female blade socket contact, order code 1971783-2, tin finish, crimp termination, 16-19 AWG or 22 AWG wire, Tape & Reel and Cut Tape packaging.
| Parameter | Value |
|---|---|
| Series | Power Triple Lock, Standard |
| Wire gauge | 16-19 AWG, 22 AWG (2) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Pin or socket | Female Blade Sockets |
| Contact finish | Tin |
| Contact termination | Crimp |
Within the Power Triple Lock family the 1971783-2 accepts a wider wire range (16-19 AWG or 22 AWG) than the 1326031-9 (16 AWG only) or the 929989-8 (17-20 AWG). The 1-1326032-0 adds a 31.5µin (0.80µm) tin thickness specification for applications requiring a documented plating build.
Both are tin-plated female blade sockets for Power Triple Lock housings. The 1971783-2 accepts 16-19 AWG or 22 AWG wire; the 1326031-9 is limited to 16 AWG. If the wire gauge in the existing harness matches 16-19 AWG or 22 AWG, the 1971783-2 can be crimped and inserted into the same housing without rewiring.
