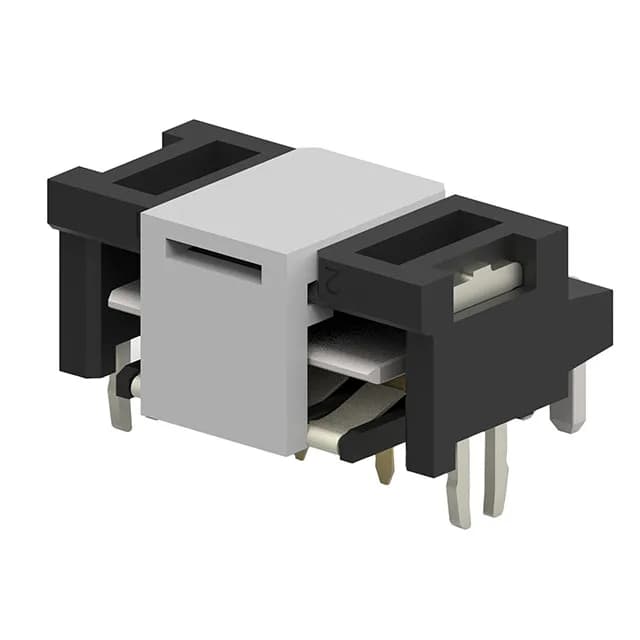

TE Connectivity Elcon Mini header, 2 positions, 1 row, male blades, 7.80mm pitch, 26A, 500V, through-hole right-angle, solder termination, gold flash contacts, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Elcon Mini |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Male Blades |
| Voltage rating | 500V |
| Current rating | 26A |
| Operating temperature | 20°C ~ 65°C |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.307\" (7.80mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 2 |
| Contact layout, typical | 2 Power |
| Contact finish thickness | Flash |
Gold flash on the mating side handles moderate reconnect duty in controlled environments.
Gold flash contacts (not a heavy gold plate) mean the mating cycle life is moderate; for frequent field reconnects, consider a thicker gold option if available in the series.
The pitch is 0.307" (7.80 mm), wide enough for the 500 V creepage requirement.
This part is sourced to order.
