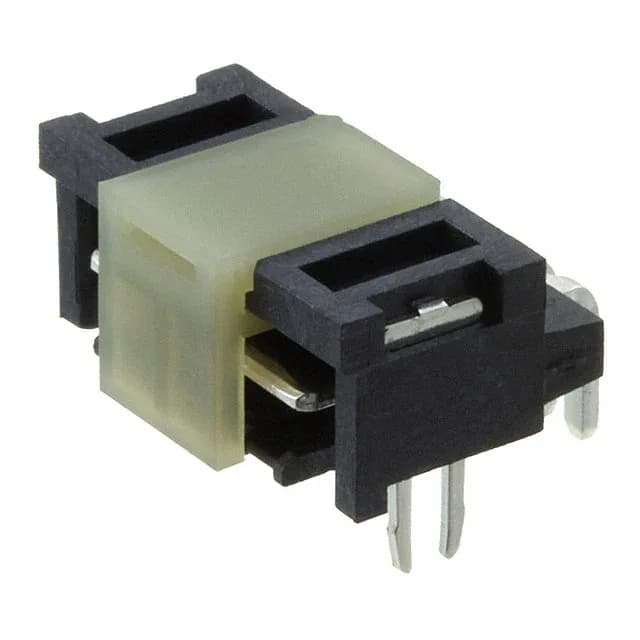

TE Connectivity Elcon Mini header, 1982295-2, 2 positions, 1 row, 26 A per circuit, 500 V, 7.80 mm pitch, through-hole right-angle, gold flash contact finish, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Elcon Mini |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Male Blades |
| Voltage rating | 500V |
| Current rating | 26A |
| Operating temperature | 20°C ~ 65°C |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.307\" (7.80mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 2 |
| Contact layout, typical | 2 Power |
| Contact finish thickness | Flash |
The TE Connectivity 1982295-2 is a 2-position header from the Elcon Mini series, designed for power delivery where a compact footprint still needs to carry bus-level current. Gold flash on the contacts handles the mating cycles expected in a power interconnect that sees occasional field service.
The pitch is 0.307" (7.80 mm), which is wider than typical signal headers and suited for the 500 V creepage requirement.
Yes, it is ROHS3 compliant.
Yes, the header includes a board lock feature for through-hole retention during soldering and vibration resistance.
