2-position 3.50 mm plug with rising cage clamp

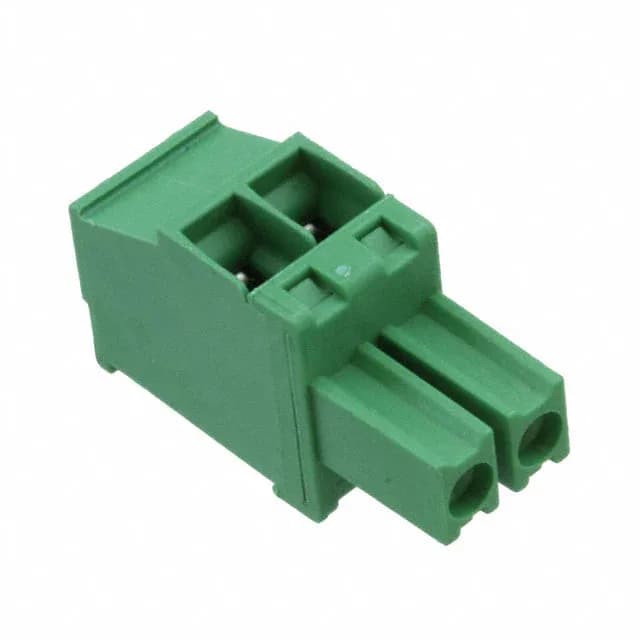

This TE Connectivity AMP Connectors 1986371-2 is a 2-position plug with female sockets, built on a 0.138" (3.50mm) pitch. It terminates via a screw – rising cage clamp, accepting 14-30 AWG (0.05-2mm²) wire. Rated 11 A at 300 V, it handles moderate power in a compact footprint.
Free-hanging mount with 270° wire entry
Mounting is free-hanging (in-line), and the plug wire entry is 270° — meaning the wire enters at a right angle relative to the mating face, useful for routing in tight enclosures where straight entry won't fit. The side-stacking feature allows multiple plugs to be ganged side-by-side without losing pitch alignment, a practical detail for multi-circuit runs.
Screw size M2 and contact finish
The screw size is M2, and the contact mating finish is tin over phosphor bronze.
