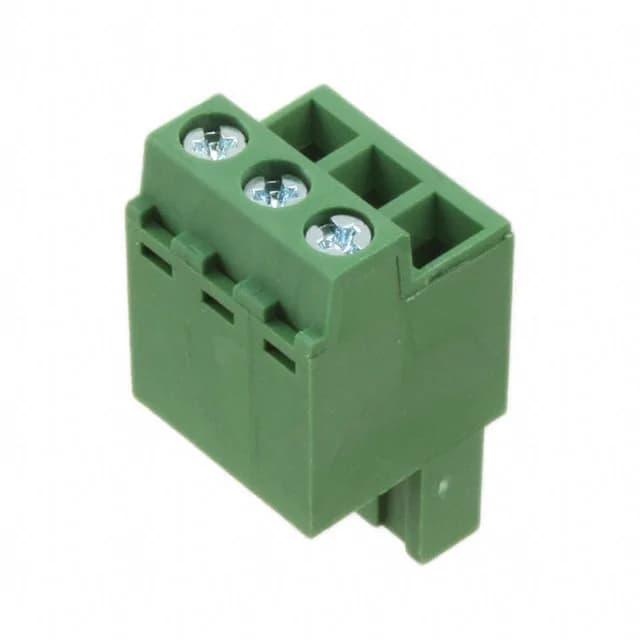

TE Connectivity AMP Connectors 1986484-3, Type Plug, Female Sockets, 3 Positions, 1 Level, 0.200" (5.08mm) Pitch, Screw - Pressure Clip Termination, 16 A, 300 V, Green, UL94 V-0, Active.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 16 A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 14-24 AWG |
| Wire gauge or range - mm2 | 0.2-2mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Insulation height | 0.587\" (14.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Pressure Clip |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
The 1986484-3: This is a 3-position plug with female sockets, designed to mate with 5.08mm pitch headers. Rated 16 A at 300 V, it uses a screw-pressure clamp termination for 14-24 AWG wire, stripped 10mm.
The screw clamp requires 0.79 Nm (7.0 Lb-In) torque — enough to hold 14 AWG solid without crushing the conductor, but easy to over-torque on 24 AWG. Stick to the spec.
It is a plug with female sockets, not a header. It mates with a 5.08mm pitch male header.
