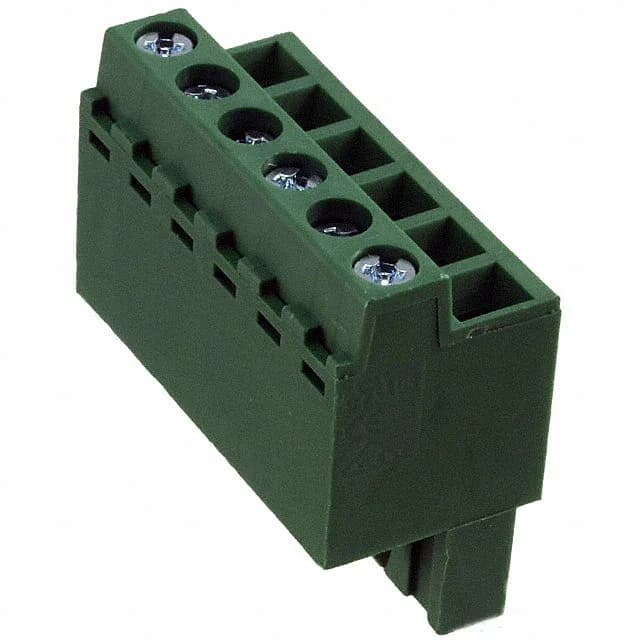

What This 6-Position Plug Handles in the Panel
Rated 16 A at 300 V per UL, it handles motor control, power supplies, and industrial I/O where the load stays below that ceiling. The 14-24 AWG wire range and 10 mm strip length match the screw pressure clip — no ferrules required for stranded wire, just strip and torque to 0.79 Nm. Retention latches on the non-wire side lock the plug into the mating header — you should hear it click.
Sourcing, Lifecycle, and Compliance
ROHS3 Compliant per the manufacturer listing.
How the 1986484-6 Compares to Sibling Plugs
The 1-2213934-1 and 1-2305909-1 are bulk-packaged siblings in the same series, both active. The 1986484-6 is the 6-position variant; the 1-2213934-1 carries 4 positions, the 1-2305909-1 carries 8 positions — same 5.08 mm pitch, same 16 A rating, same screw pressure clip termination.
