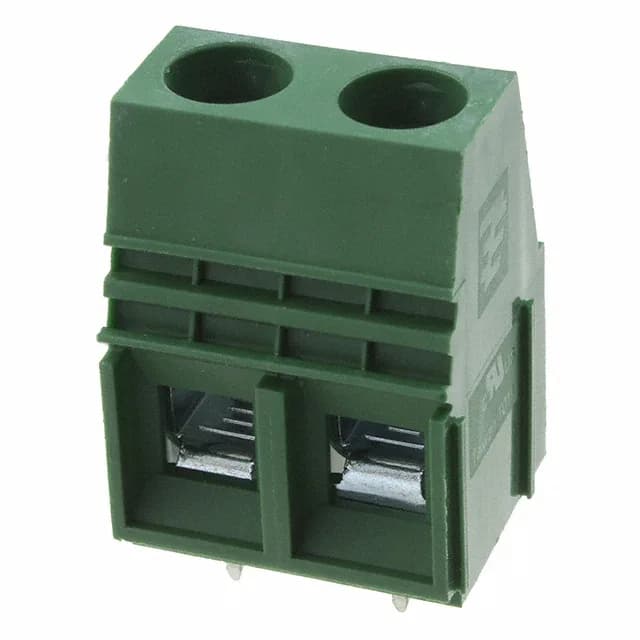

TE Connectivity, 1986660-2, 2-position side-entry terminal block, 0.400" (10.16mm) pitch, 65 A, 300 V, through-hole, screw termination, green PA66 housing, M4 screw, 6-26 AWG, bulk.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 65 A |
| Wire gauge | 6-26 AWG |
| Wire termination | Screw |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Brass - Nickel Plated |
| Screw material - plating | Steel - Zinc Plated |
| Pitch | 0.400\" (10.16mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M4 |
| Torque - screw | 2.26 Nm (20 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 2 |
The 1986660-2: That current rating places it squarely in the power distribution class — it carries bus-level current through a PCB-mounted block, not signal-level wiring.
Wire termination is via an M4 screw clamping a brass/nickel-plated clamp — the screw itself is steel with a zinc plating for corrosion resistance. The wire range of 6-26 AWG means this block accepts everything from heavy 6 AWG power cable down to 26 AWG control wiring.
The block accepts 6–26 AWG conductors. The 6 AWG lower limit is consistent with its 65 A current rating.
