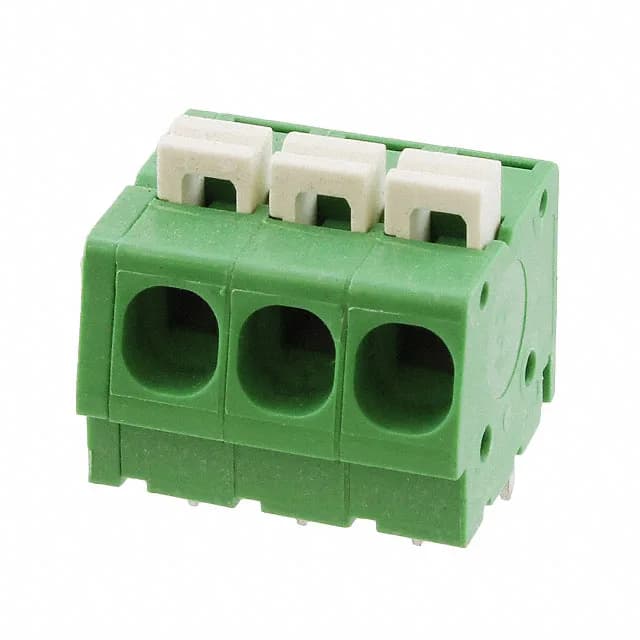

3-Position PCB Terminal Block with Push-Button Clamp
It uses a screwless push-button clamp mechanism to secure 12-30 AWG wire, with the mating orientation horizontal to the PCB. The green polyamide housing carries a single level of terminals at a 0.200" (5.08mm) pitch, rated for 16 A per position at 300 V. The interlocking side feature allows multiple blocks to be ganged side-by-side without gaps.
Rated 16 A per position at 300 V, single-level layout.
Wire Termination and Board Mounting
The screwless push-button clamp accepts solid or stranded wire from 12 AWG down to 30 AWG — no screwdriver needed for termination. The through-hole mounting keeps the block anchored during wave solder. The interlocking side feature lets you stack multiple 1986712-3 blocks side-by-side to build a multi-position strip without losing the 5.08mm pitch alignment.
