TE Connectivity AMP Connectors 1986712-4 — Wire-to-Board Headers

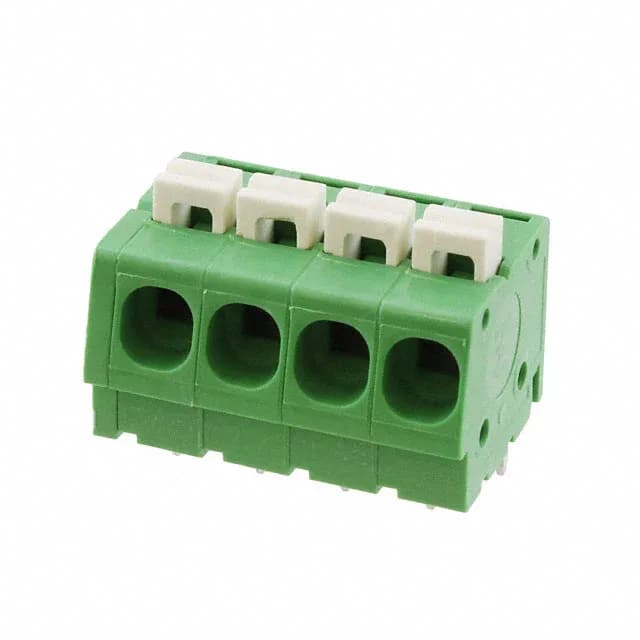

TE Connectivity 1986712-4 Terminal Block, 4 Position, 5.08mm

MPN1986712-4
Active

TE Connectivity, 1986712-4, PCB terminal block, 4 positions, 5.08 mm pitch, 16 A, 300 V, through hole, screwless push-button clamp, green polyamide housing.

$3.6300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1986712-4 specifications
ParameterValue
MountingThrough Hole
Voltage300 V
Current16 A
Wire gauge12-30 AWG
Wire terminationScrewless - Push Button Clamp
Operating temperature-40°C ~ 110°C
ColorGreen
Housing materialPolyamide (PA), Nylon
Clamp material - platingSteel
Contact material - platingCopper Alloy - Tin Plated
Pitch0.200\" (5.08mm)
PackageBulk
FeaturesInterlocking (Side)
Number of levels1
Mating orientationHorizontal with Board
Positions per level4

Product details

The 1986712-4: It uses a screwless push-button clamp termination — push the orange button, insert the stripped wire, release. Side interlocking lets you gang multiple blocks into a multi-position assembly without extra hardware — useful when a design needs more than four circuits on the same pitch.

Wire termination is screwless — push-button clamp style. Accepts 12-30 AWG. The clamp material is steel, contacts are copper alloy with tin plating. Mating orientation is horizontal with the board, so the wire entry is parallel to the PCB — common for edge-mounted terminal blocks in control panels. No screw torque to chase; the push button seats the wire and the spring holds it.
