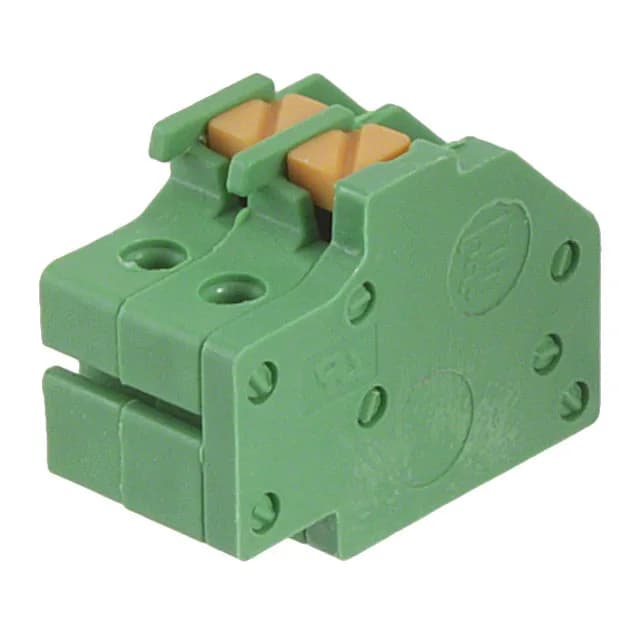

The 1986716-2 is a 2-position plug for unshrouded headers, part of TE's terminal block plug family. It uses a screwless push-in spring termination that accepts 16-20 AWG wire with an 8.5-10mm strip length — no tool needed beyond wire prep. Rated 2 A at 150 V, this plug is suited for signal-level control wiring inside an enclosure. The push button actuator releases the spring for wire insertion and extraction; side stacking lets you gang multiple plugs side-by-side on the same header without losing position count.
Termination and mating checklist
Termination style is screwless — leg spring, push-in spring. Wire range is 16-20 AWG or 0.5-1.3mm². Strip length must be 8.5-10mm for proper spring grip. Mounting type is free hanging (in-line), with a 90° plug wire entry. The housing is green polyamide (PA/Nylon) with UL94 V-0 flammability rating.
